Light controllers · 3 models · from $119.00

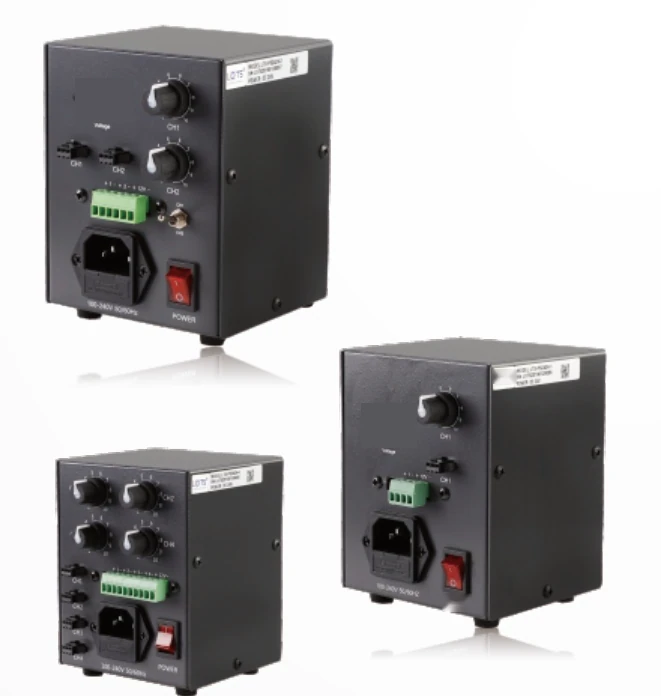

Analog controller, high cost-effective (PS)
The Analog controller, high cost-effective (PS) is a range of 3 light controllers from LumaSpec Vision, from $119.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 1 ch, 24 W, 2 ch, 24 W, 4 ch, 24 W |
|---|---|
| Output | Constant voltage 24 V |
| Channels | 1 channel, 2 channels, 4 channels |
| Control | Analog |
| Feature | Constant current |
Features
- Simple structure, compact volume, DIN guide rail installation
- External trigger function
- Luminance stepless adjustment
- Voltage display function
- Normal on / normal closed mode optional
- 12V 500mA output to supply other devices (e.g. camera)
- Low level trigger: input 0-1.5V to the +/- port (or short +/-) to trigger
- Trigger delay T1 <= 200us, T3 <= 200us
All 3 models in the Analog controller, high cost-effective (PS)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-PS2424-1 | 1 ch, 24 W | 24 W | $119.00 | 4 in stock | View |
| LS-PS2424-2 | 2 ch, 24 W | 24 W | $139.00 | 2 in stock | View |
| LS-PS2424-4 | 4 ch, 24 W | 24 W | $179.00 | 5 in stock | View |
