Light controllers · 3 models · from $409.00

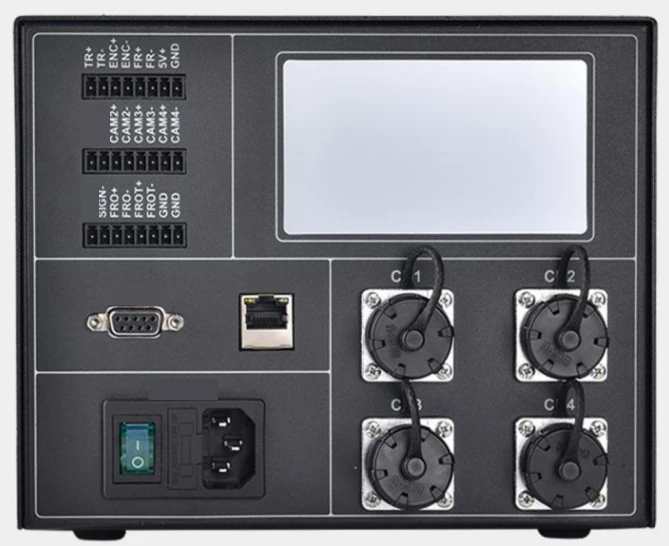

Touch-screen time-sharing strobe controller, 4 channels (DV-LF03CE)
The Touch-screen time-sharing strobe controller, 4 channels (DV-LF03CE) is a range of 3 light controllers from LumaSpec Vision, from $409.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 4 ch, 500 W |
|---|---|
| Output | Constant voltage 48 V |
| Channels | 4 channels |
| Control | Analog |
| Feature | Strobe |
Features
- Color LCD display, touch screen to set the frequency and mode manually
- Support RS232/100M Ethernet communication
- Built-in 24V/48V switching power supply
- Low delay trigger time (less than 500ns)
- Support external trigger/internal trigger mode
- Temperature control cooling function
- Supports multiple frequency division function
- Compatible with differential and level signals
All 3 models in the Touch-screen time-sharing strobe controller, 4 channels (DV-LF03CE)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-DV500-LF03CE-24100-4 | 4 ch, 500 W | 500 W | $409.00 | 3 in stock | View |
| LS-DV500-LF03CE-36100-4 | 4 ch, 500 W | 500 W | $409.00 | 5 in stock | View |
| LS-DV500-LF03CE-48100-4 | 4 ch, 500 W | 500 W | $409.00 | 3 in stock | View |
