Light controllers · 14 models · from $219.00

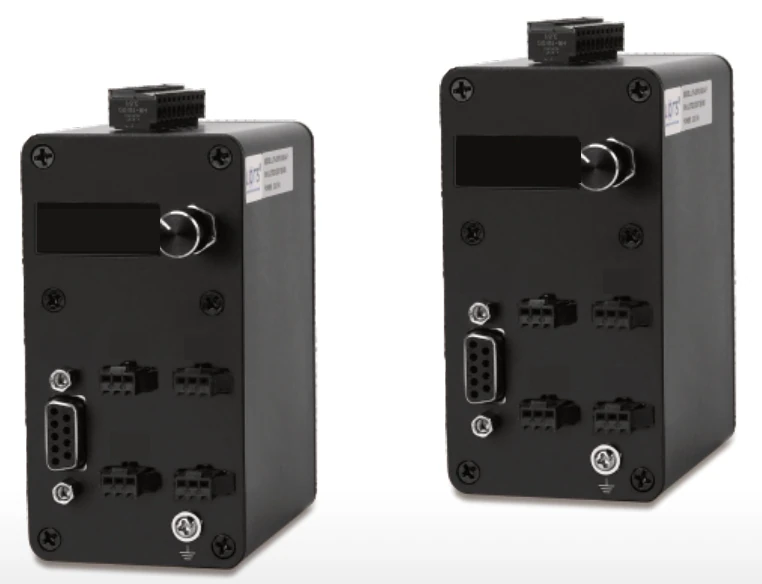

Digital control box (3DPC)
The Digital control box (3DPC) is a range of 14 light controllers from LumaSpec Vision, from $219.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 2 ch, 60 W, 4 ch, 120 W, 4 ch, 200 W, 4 ch, 60 W, 4 ch, 80 W, 8 ch, 120 W, 8 ch, 200 W, 12 ch, 200 W |
|---|---|
| Output | Constant voltage 24 V |
| Channels | 2 channels, 4 channels, 8 channels, 12 channels |
| Control | Digital |
| Feature | Strobe |
Features
- High cost-effective
- Constant on and strobe mode optional
- 0-255ms strobe lighting time can be set
- 10us short delay time, 256-level luminance adjustable
- Encoder knob: H1 constant on / H0 constant off; press knob for P mode (P1 exit strobe, P0 enter strobe)
- Overcurrent protection: display shows Er03, cleared by restart or reset command
- Support RS232 /LAN communication
- High trigger frequency, short response time 10us
All 14 models in the Digital control box (3DPC)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-3DPC2460-2C | 2 ch, 60 W | 60 W | $219.00 | 4 in stock | View |
| LS-3DPC2460-2S | 2 ch, 60 W | 60 W | $219.00 | 5 in stock | View |
| LS-3DPC2460-4C | 4 ch, 60 W | 60 W | $279.00 | 5 in stock | View |
| LS-3DPC2460-4S | 4 ch, 60 W | 60 W | $279.00 | 4 in stock | View |
| LS-3DPC2480-4F | 4 ch, 80 W | 80 W | $289.00 | 5 in stock | View |
| LS-3DPC24120-4C | 4 ch, 120 W | 120 W | $309.00 | 5 in stock | View |
| LS-3DPC24120-4S | 4 ch, 120 W | 120 W | $309.00 | 4 in stock | View |
| LS-3DPC24200-4C | 4 ch, 200 W | 200 W | $339.00 | 2 in stock | View |
| LS-3DPC24200-4S | 4 ch, 200 W | 200 W | $339.00 | 2 in stock | View |
| LS-3DPC24120-8C | 8 ch, 120 W | 120 W | $429.00 | 4 in stock | View |
| LS-3DPC24120-8S | 8 ch, 120 W | 120 W | $429.00 | 5 in stock | View |
| LS-3DPC24200-8C | 8 ch, 200 W | 200 W | $469.00 | 3 in stock | View |
| LS-3DPC24200-8S | 8 ch, 200 W | 200 W | $469.00 | 5 in stock | View |
| LS-3DPC24200-12S | 12 ch, 200 W | 200 W | $589.00 | 5 in stock | View |
