Light controllers · 14 models · from $199.00

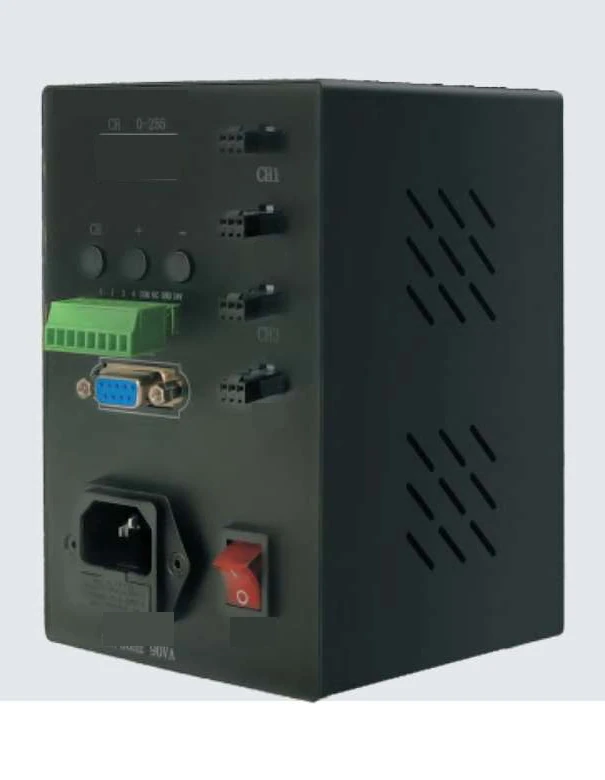

DPC digital power supply controller
The DPC digital power supply controller is a range of 14 light controllers from LumaSpec Vision, from $199.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 2 ch, 4 ch, 6 ch, 8 ch |
|---|---|
| Output | Constant voltage 24 V, Constant voltage 48 V |
| Channels | 2 channels, 4 channels, 6 channels, 8 channels |
| Control | Digital |
Features
- Multi-channel constant-voltage output controlled from the front panel or the serial port
- 256-step digital dimming; load light brightness can be precisely controlled by software
- RS232 serial communication control
- Power-off memory: current settings are kept and restored automatically after restart
- Built-in overload auto-protection
- High-speed optocoupler-isolated trigger
All 14 models in the DPC digital power supply controller
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-HDPC2465D-2T | 2 ch | $199.00 | 2 in stock | View |
| LS-HDPC24125D-2T | 2 ch | $199.00 | 2 in stock | View |
| LS-HDPC48150D-2T | 2 ch | $199.00 | 4 in stock | View |
| LS-HDPC24400D-2T | 2 ch | $199.00 | 2 in stock | View |
| LS-HDPC24500D-2T | 2 ch | $199.00 | 2 in stock | View |
| LS-HDPC2465D-4T | 4 ch | $259.00 | 2 in stock | View |
| LS-HDPC24125D-4T | 4 ch | $259.00 | 4 in stock | View |
| LS-HDPC24200D-4T | 4 ch | $259.00 | 2 in stock | View |
| LS-HDPC2465D-6T | 6 ch | $319.00 | 5 in stock | View |
| LS-HDPC24125D-6T | 6 ch | $319.00 | 4 in stock | View |
| LS-HDPC24200D-6T | 6 ch | $319.00 | 2 in stock | View |
| LS-HDPC2465D-8T | 8 ch | $379.00 | 5 in stock | View |
| LS-HDPC24125D-8T | 8 ch | $389.00 | 4 in stock | View |
| LS-HDPC24200D-8T | 8 ch | $389.00 | 3 in stock | View |
