Light controllers · 15 models · from $119.00

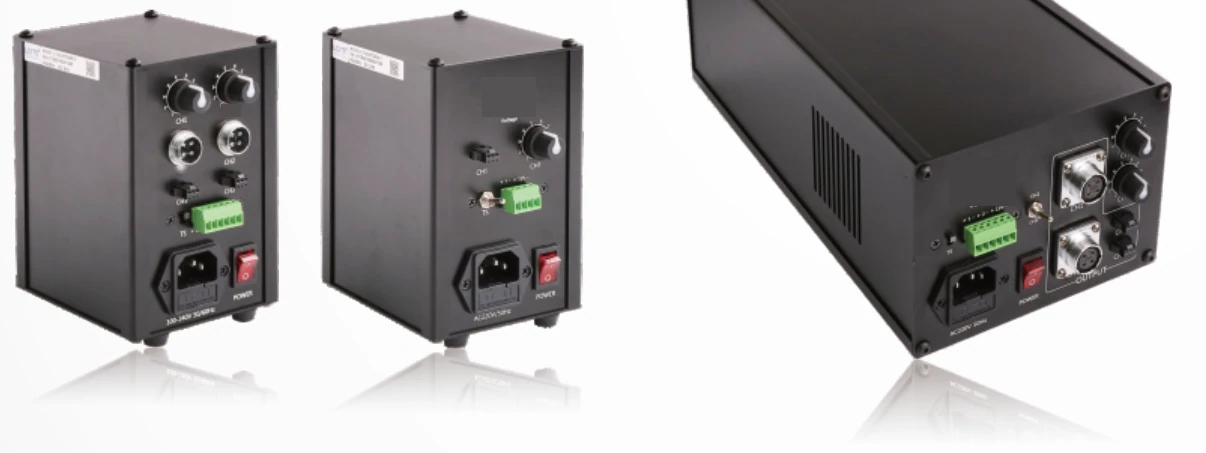

Analog controller (2APC)
The Analog controller (2APC) is a range of 15 light controllers from LumaSpec Vision, from $119.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 1 ch, 1000 W, 1 ch, 120 W, 1 ch, 1500 W, 1 ch, 200 W, 1 ch, 24 W, 1 ch, 400 W, 1 ch, 60 W, 2 ch, 120 W, 2 ch, 24 W, 2 ch, 400 W, 2 ch, 60 W, 4 ch, 24 W, 4 ch, 60 W, 6 ch, 60 W, 8 ch, 120 W |
|---|---|
| Output | Constant voltage 24 V |
| Channels | 1 channel, 2 channels, 4 channels, 6 channels, 8 channels |
| Control | Analog |
| Feature | Constant current |
Features
- Compact dimension, easy to install
- Luminance stepless adjustment
- Short-circuit protection
- External trigger function
- Voltage display function
- Clear operation mark
- 12V 500mA output to supply other devices
- High level and low level trigger optional (model dependent)
All 15 models in the Analog controller (2APC)
| Model | Size | Power | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-2APC2424-1 | 1 ch, 24 W | 24 W | $119.00 | 3 in stock | View |
| LS-2APC2460-1 | 1 ch, 60 W | 60 W | $129.00 | 2 in stock | View |
| LS-2APC2424-2 | 2 ch, 24 W | 24 W | $139.00 | 4 in stock | View |
| LS-2APC2460-2 | 2 ch, 60 W | 60 W | $149.00 | 4 in stock | View |
| LS-2APC24120-1 | 1 ch, 120 W | 120 W | $149.00 | 3 in stock | View |
| LS-2APC24120-2 | 2 ch, 120 W | 120 W | $169.00 | 2 in stock | View |
| LS-2APC24200-1 | 1 ch, 200 W | 200 W | $169.00 | 2 in stock | View |
| LS-2APC2424-4 | 4 ch, 24 W | 24 W | $179.00 | 2 in stock | View |
| LS-2APC2460-4 | 4 ch, 60 W | 60 W | $189.00 | 4 in stock | View |
| LS-2APC2460-6 | 6 ch, 60 W | 60 W | $229.00 | 5 in stock | View |
| LS-2APC24120-8 | 8 ch, 120 W | 120 W | $289.00 | 3 in stock | View |
| LS-2APC24400-1 | 1 ch, 400 W | 400 W | $329.00 | 5 in stock | View |
| LS-2APC24400-2 | 2 ch, 400 W | 400 W | $359.00 | 5 in stock | View |
| LS-2APC481000-1 | 1 ch, 1000 W | 1000 W | $589.00 | 3 in stock | View |
| LS-2APC481500-1 | 1 ch, 1500 W | 1500 W | $809.00 | 3 in stock | View |
