Light controllers · 18 models · from $129.00

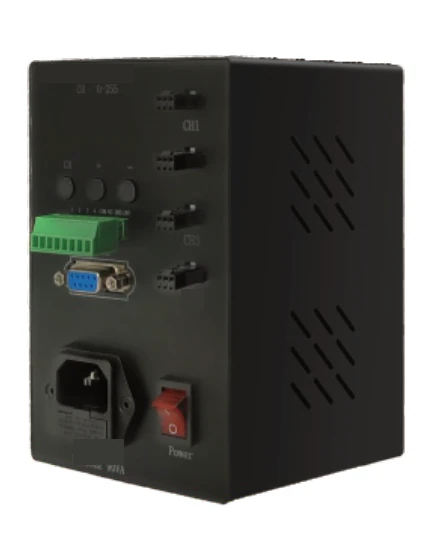

DPC digital controller
The DPC digital controller is a range of 18 light controllers from LumaSpec Vision, from $129.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 2 ch, 4 ch, 6 ch, 8 ch, 12 ch |
|---|---|
| Output | Constant voltage 24 V |
| Channels | 2 channels, 4 channels, 6 channels, 8 channels, 12 channels |
| Control | Digital |
| Feature | Constant current |
Features
- 256 levels digital control
- Support RS232 communication
- Memory function while power off
- Overload protection function
- High speed optocoupler isolation trigger
- Constant voltage output controlled by panel or RS232
All 18 models in the DPC digital controller
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-DPC2430K-2T | 2 ch | $129.00 | 5 in stock | View |
| LS-DPC2465D-2T | 2 ch | $129.00 | 2 in stock | View |
| LS-DPC24125D-2T | 2 ch | $129.00 | 5 in stock | View |
| LS-DPC24200D-2T | 2 ch | $129.00 | 5 in stock | View |
| LS-MDPC2480-2T | 2 ch | $129.00 | 5 in stock | View |
| LS-DPC2405K-4T | 4 ch | $169.00 | 2 in stock | View |
| LS-DPC2465D-4T | 4 ch | $169.00 | 5 in stock | View |
| LS-DPC24125D-4T | 4 ch | $169.00 | 2 in stock | View |
| LS-MDPC2480-4T | 4 ch | $169.00 | 5 in stock | View |
| LS-DPC24200D-4T | 4 ch | $179.00 | 4 in stock | View |
| LS-HDPC24500P-4T | 4 ch | $179.00 | 2 in stock | View |
| LS-DPC2465D-6T | 6 ch | $219.00 | 4 in stock | View |
| LS-DPC24125D-6T | 6 ch | $219.00 | 4 in stock | View |
| LS-DPC24200D-6T | 6 ch | $219.00 | 2 in stock | View |
| LS-DPC2465D-8T | 8 ch | $259.00 | 3 in stock | View |
| LS-DPC24125D-8T | 8 ch | $259.00 | 2 in stock | View |
| LS-DPC24200D-8T | 8 ch | $259.00 | 4 in stock | View |
| LS-DPC24380-12T | 12 ch | $349.00 | 3 in stock | View |
