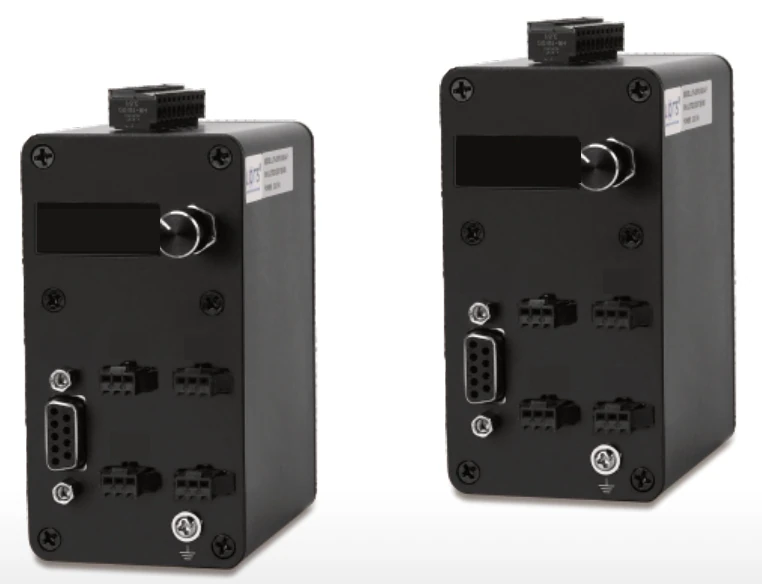

Digital control box (3DPC), 4 ch, 80 W (LS-3DPC2480-4F)
Model LS-3DPC2480-4F
Digital control box, high cost-effective: constant on and strobe mode optional, 0-255ms strobe lighting time can be set, 10us short delay time, 256-level luminance adjustable.
Features
- High cost-effective
- Constant on and strobe mode optional
- 0-255ms strobe lighting time can be set
- 10us short delay time, 256-level luminance adjustable
- Encoder knob: H1 constant on / H0 constant off; press knob for P mode (P1 exit strobe, P0 enter strobe)
- Overcurrent protection: display shows Er03, cleared by restart or reset command
Specifications
| Model | LS-3DPC2480-4F |
|---|---|
| Input voltage | DC 24V |
| Total output current | 3.34A |
| Baud rate | 9600 bps |
| Luminance adjustment method | manual adjust by knob, PC remote adjusting |
| Luminance adjustment mode | PWM adjust |
| Luminance adjustment level | 256 level |
| Working mode | Constant on / Trigger / Strobe |
| Trigger delay time | <=10us |
| Memory function | data saved automatically when power off |
| External trigger voltage | 5-24V |
| Communication | RS232 |
| Operating environment | humidity 20%-85%RH (frost free), 0-50 C |
| Storage environment | humidity 20%-85%RH (frost free), 0-60 C |
| Mounting | DIN guide rail mounting base |
| Channels | 4 |
| Output voltage | 24V |
| One way max. output power | 80W |
| Total output power | 80W |
| External trigger support | Y |
| Control | encoder knob + digital display / RS232 |
| Shipping weight | 0.35 kg |
