Coaxial lights

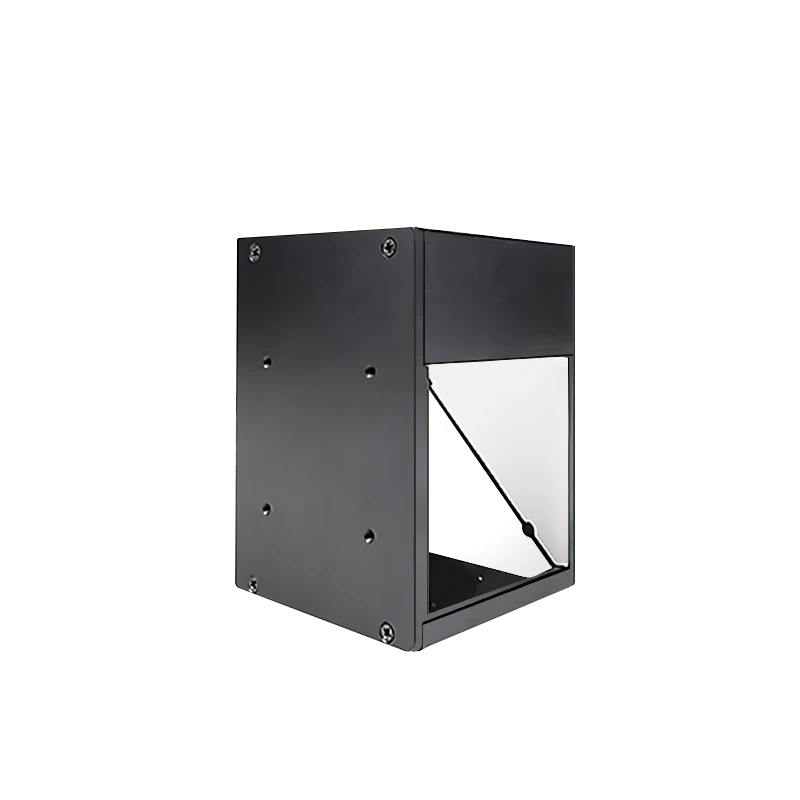

Coaxial light, standard type (LS-CXL-S10)
- 7 models
- from $119.00
- Series LS-CXL-S10
The Coaxial light, standard type (LS-CXL-S10) is a range of 7 coaxial lights from LumaSpec Vision, from $119.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 20 x 20 mm, 30 x 30 mm, 35 x 35 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 70 x 70 mm
- Colour
- Red, Blue, White
- Voltage
- 24 V
- Connector
- 3-pin flat
Features
- Coaxial illumination through a beam splitter: in a stamped-parts example, recessed areas appear darker and are easier to identify than under standard light
- Three-colour RGB light source, luminescent surface size, wavelength/colour temperature, mounting, input wire length and light-mouth dustproof mirror customization
- Luminescent surface size: 20mm x 20mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for Mark point positioning, QR code detection,uneven surfaces and Highly reflective object scratch detection, etc.
Typical uses
- Mark point positioning
- Two-dimensional code detection
- Chip, chip breakage detection
- Screen printing positioning
- Scratch detection of metal, glass bottles and other highly reflective surface objects
- Detecting stamped parts
All 7 models in the Coaxial light, standard type (LS-CXL-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0049 | 20 x 20 mm | 50x28x28 | 20x20 | 2.8 | $119.00 | View |
| LS-CXL-0050 | 30 x 30 mm | 65x38x38 | 30x30 | 4 | $149.00 | View |
| LS-CXL-0053 | 35 x 35 mm | 70x44x47.5 | 35x35 | 3.4 | $159.00 | View |
| LS-CXL-0051 | 40 x 40 mm | 78x48x50 | 40x40 | 6 | $179.00 | View |
| LS-CXL-0054 | 50 x 50 mm | 100x60x67.5 | 50x50 | 5.7 | $219.00 | View |
| LS-CXL-0052 | 60 x 60 mm | 100x70x70 | 60x60 | 11 | $269.00 | View |
| LS-CXL-0055 | 70 x 70 mm | 110x82x84.5 | 70x70 | 11 | $309.00 | View |
