Coaxial lights

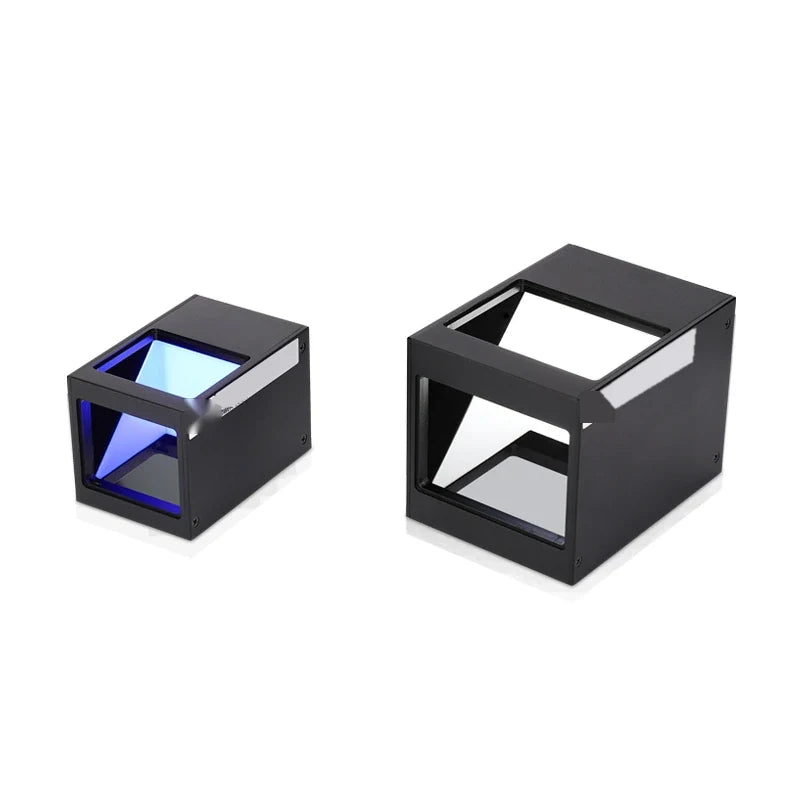

Right-angle coaxial light (LS-CXL-S09)
- 7 models
- from $239.00
- Series LS-CXL-S09
The Right-angle coaxial light (LS-CXL-S09) is a range of 7 coaxial lights from LumaSpec Vision, from $239.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 50-100 mm, 100-200 mm
- Voltage
- 24 V
Features
- Compact,space saving
- 90° between ray and CCD camera, compact structure
Typical uses
- The surface scratch of bright and clear object, food packaging
All 7 models in the Right-angle coaxial light (LS-CXL-S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0042 | 20 x 16 | 1.5W/1.5W | L54xW30xH30(mm) | 4-M3 depth 4.5 | $239.00 | View |
| LS-CXL-0043 | 30 x 20 | 2.9W/4.4W | L64xW40xH40(mm) | 4-M3 depth 5 | $279.00 | View |
| LS-CXL-0044 | 40 x 33 | 4.4W/4.4W | L74xW50xH50(mm) | 4-M3 depth 4.5 | $329.00 | View |
| LS-CXL-0045 | 50 x 38 | 6.5W/7.2W | L84xW60xH60(mm) | 4-M3 depth 4.5 | $389.00 | View |
| LS-CXL-0046 | 8.7W/10.8W | L94xW70xH70(mm) | 4-M3 depth 4.5 | $439.00 | View | |
| LS-CXL-0047 | 80 x 70 | 15.2W/21.6W | L114xW92xH92(mm) | 4-M3 depth 4.5 | $559.00 | View |
| LS-CXL-0048 | 100 x 76 | 26.0W/32.4W | L134xW112xH112(mm) | 4-M3 depth 4.5 | $689.00 | View |
