Coaxial lights

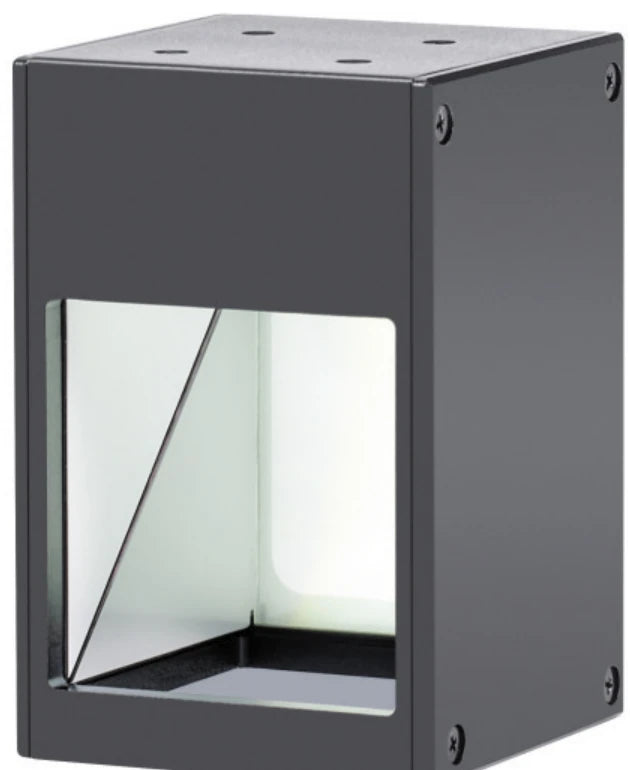

High-definition coaxial light (LS-CXL-S20)
- 4 models
- from $109.00
- Series LS-CXL-S20
The High-definition coaxial light (LS-CXL-S20) is a range of 4 coaxial lights from LumaSpec Vision, from $109.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 16 x 14.6 mm, 19 x 19 mm, 30 x 30 mm, 39 x 38 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Light path and optical design different from conventional coaxial lights
- Eliminates ghosting caused by light-path refraction and transmission
- Small field of view and high-magnification imaging stay sharp without distortion
- Can be customised to different wavelengths
Typical uses
- Phone screen positioning
- Camera module appearance inspection
- Ceramic capacitor appearance inspection
- PCB Mark positioning
- Glass surface defect inspection
- Chip edge positioning
All 4 models in the High-definition coaxial light (LS-CXL-S20)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0137 | 16 x 14.6 mm | 23 | 45 | 16 x 14.6 | $109.00 | View |
| LS-CXL-0138 | 19 x 19 mm | 27 | 53.7 | 19 x 19 | $119.00 | View |
| LS-CXL-0139 | 30 x 30 mm | 36 | 56 | 30 x 30 | $149.00 | View |
| LS-CXL-0140 | 39 x 38 mm | 47 | 70 | 39 x 38 | $179.00 | View |
