Coaxial lights

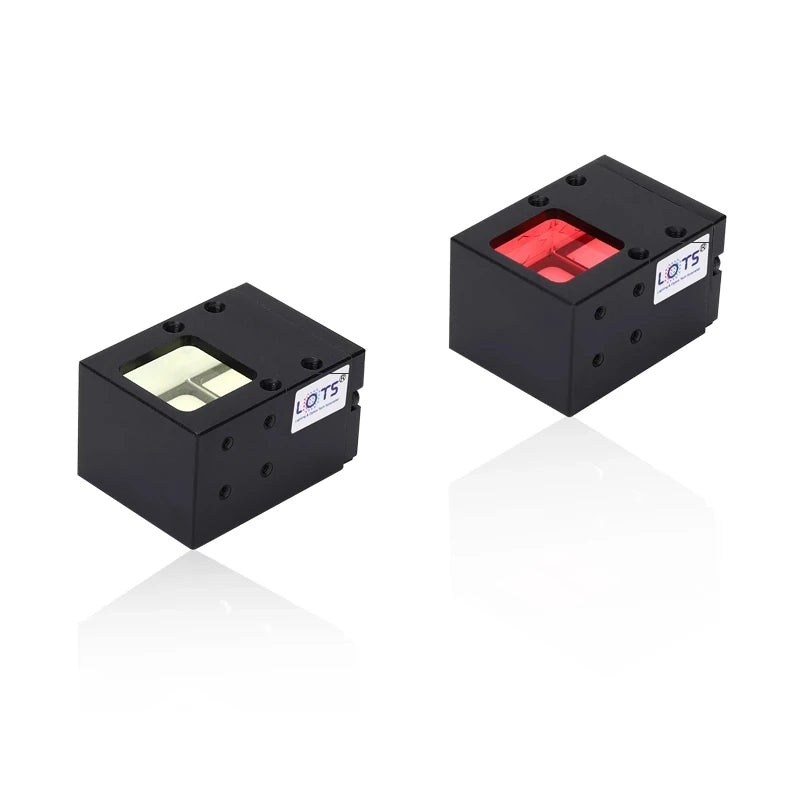

High precision coaxial light (LS-CXL-S08)
- 11 models
- from $169.00
- Series LS-CXL-S08
The High precision coaxial light (LS-CXL-S08) is a range of 11 coaxial lights from LumaSpec Vision, from $169.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- Under 50 mm, 50-100 mm, 100-200 mm
- Voltage
- 24 V
Features
- Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision
- More suitable for tiny object inspection
- Compact structure, suitable for limited space environment
Typical uses
- The damage inspection of the chip, wafer
- The scratch of reflective surface
- Bar code, QR code recognition
- Printing, silk-screen inspection
All 11 models in the High precision coaxial light (LS-CXL-S08)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0031 | 0.8W/2.2W | L36xW25xH19(mm) | 4-M3 depth 6 | $169.00 | View | |
| LS-CXL-0032 | 1.5W/1.5W | L41xW30xH24(mm) | 4-M3 depth 6 | $189.00 | View | |
| LS-CXL-0033 | 1.5W/1.5W | L54xW30xH30mm) | 4-M3 depth 4.5 | 20 x 16 mm | $239.00 | View |
| LS-CXL-0034 | 2.9W/4.4W | L55.5xW40xH34(mm) | 4-M3 depth 4.5 | $249.00 | View | |
| LS-CXL-0035 | 2.9W/4.4W | L64xW40xH40(mm) | 4-M3 depth 4.5 | 30 x 30 mm | $279.00 | View |
| LS-CXL-0036 | 4.4W/4.4W | L74xW50xH50(mm) | 4-M3 depth 4.5 | 40 x 33 mm | $329.00 | View |
| LS-CXL-0037 | 6.5W/7.2W | L84xW60xH60(mm) | 4-M3 depth 4.5 | 50 x 38 mm | $389.00 | View |
| LS-CXL-0038 | 8.7W/10.8W | L94xW70xH70(mm) | 4-M3 depth 4.5 | 60 x 43 mm | $439.00 | View |
| LS-CXL-0039 | 15.2W/21.6W | L114xW90xH92(mm) | 4-M3 depth 4.5 | 80 x 70 mm | $559.00 | View |
| LS-CXL-0040 | 24.5W/32.4W | L134xW110xH112(mm) | 4-M3 depth 4.5 | 100 x 76 mm | $689.00 | View |
| LS-CXL-0041 | 34.6W/45.4W | L154xW130xH132(mm) | 4-M3 depth 4.5 | 120 x 96 mm | $829.00 | View |
