Coaxial lights

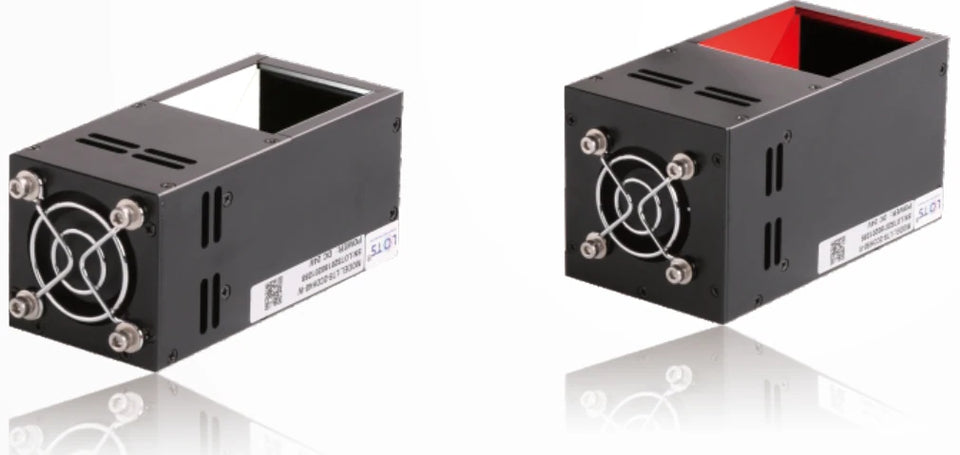

High power coaxial light (LS-CXL-S05)
- 6 models
- from $149.00
- Series LS-CXL-S05
The High power coaxial light (LS-CXL-S05) is a range of 6 coaxial lights from LumaSpec Vision, from $149.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 80 mm, 80 x 80 mm, 100 x 100 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Luminance 2-3 times that of a normal coaxial light, high uniformity
- For inspection of objects shot in motion or with short exposure
- Fan cooled; fan and light are powered independently
- Wire jacket covers the cable exit, anti-pull
- Compared with coaxial light LS-CXL-0025-W in the same test environment, LS-CXL-0006-W has high luminance and long life-span, suitable for shooting in motion and strobe
- Customizable: Viewport, Length and width, Combined light, Colour & colour temperature, Cable length, Installation method
- UV & IR versions can be customized as required
- Luminance is twice to triple to the normal coaxial light, high uniformity
Typical uses
- Scratch inspection of metal or plastic surfaces
- Indentation or defect inspection of reflective surfaces
- Character or line inspection of printed circuit boards
- Inspection of surface characters on a mobile charging port
- Imaging example: edge inspection of a pad shell (LS-CXL-0006-W), strengthens the contour feature
- The scratch inspection of metal or plastic surface
All 6 models in the High power coaxial light (LS-CXL-S05)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0005 | 30 x 30 mm | 30 x 30 | 9.6W/14.4W | L96xW40xH40(mm) | $149.00 | View |
| LS-CXL-0006 | 40 x 40 mm | 40 x 40 | 14.4W/14.4W | L111xW50xH50(mm) | $179.00 | View |
| LS-CXL-0007 | 50 x 50 mm | 50 x 50 | 21.6W/24.0W | L121xW60xH60(mm) | $219.00 | View |
| LS-CXL-0008 | 60 x 80 mm | 60 x 80 | 28.8W/36.0W | L131xW70xH70(mm) | $359.00 | View |
| LS-CXL-0009 | 80 x 80 mm | 80 x 80 | 50.4W/72.0W | L151xW92xH90(mm) | $369.00 | View |
| LS-CXL-0010 | 100 x 100 mm | 100 x 100 | 81.6W/108.0W | L181xW112xH110(mm) | $489.00 | View |
