Coaxial lights

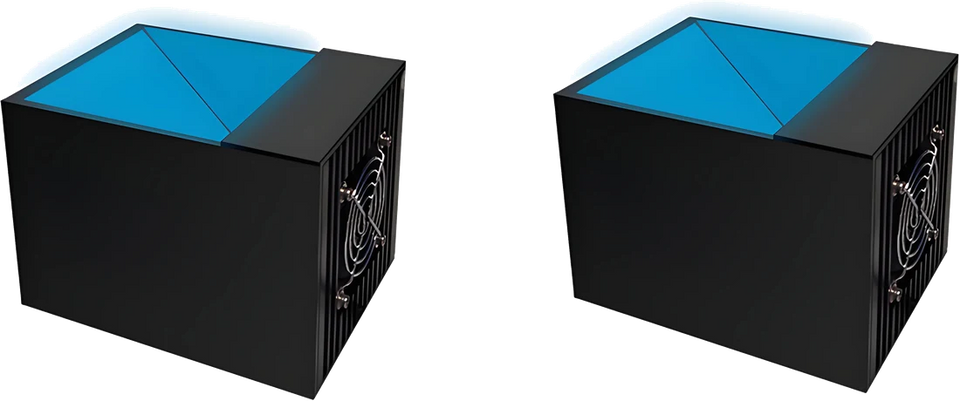

High power coaxial light (LS-CXL-S14)
- 6 models
- from $219.00
- Series LS-CXL-S14
The High power coaxial light (LS-CXL-S14) is a range of 6 coaxial lights from LumaSpec Vision, from $219.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Fan cooling, with high power LED, high brightness
- For inspection of shots in motion or short exposure products
Typical uses
- Scratch inspection of metal or plastic surfaces
- Indentation or defect inspection of reflective surfaces
- Motor centre location inspection
- Metal cylinder end face detection
- Button inner iron ring defect detection
- Small magnetic core defect detection
All 6 models in the High power coaxial light (LS-CXL-S14)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0099 | 30 x 30 mm | 30x30 | 96x40x40 | 8.7 | $219.00 | View |
| LS-CXL-0100 | 40 x 40 mm | 40x40 | 110x50x50 | 9 | $269.00 | View |
| LS-CXL-0101 | 50 x 50 mm | 50x50 | 121x60x60 | 14.4 | $329.00 | View |
| LS-CXL-0102 | 60 x 60 mm | 60x60 | 131x70x70 | 22 | $389.00 | View |
| LS-CXL-0103 | 80 x 80 mm | 80x80 | 151x92x90 | 44 | $529.00 | View |
| LS-CXL-0104 | 100 x 100 mm | 100x100 | 181x112x110 | 65 | $689.00 | View |
