Coaxial lights

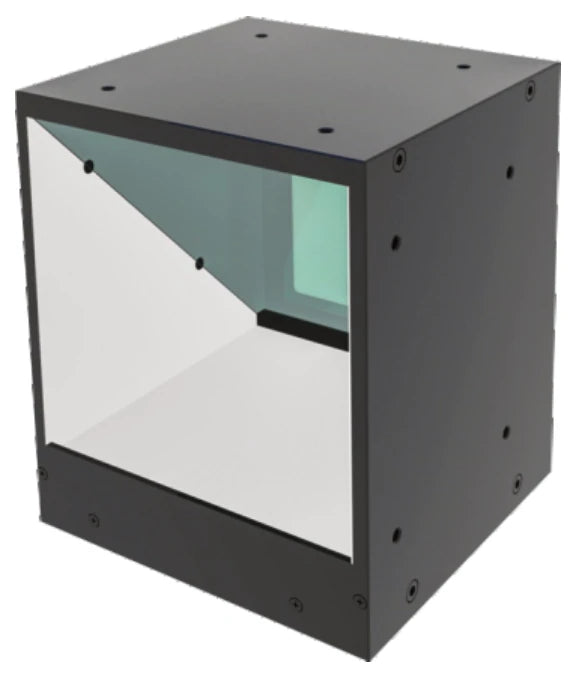

Coaxial light (LS-CXL-S19)
- 16 models
- from $109.00
- Series LS-CXL-S19
The Coaxial light (LS-CXL-S19) is a range of 16 coaxial lights from LumaSpec Vision, from $109.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 16 x 14.6 mm, 19 x 19 mm, 26 x 25 mm, 30 x 30 mm, 39 x 38 mm, 55 x 40 mm, 61 x 60 mm, 70 x 40 mm, 80 x 80 mm, 102 x 100 mm, 120 x 120 mm, 120 x 65 mm, 140 x 140 mm, 180 x 130 mm, 490 x 59 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 12 V
- Connector
- JST SM-2A (core 1 +, core 2 -)
Features
- High uniformity, clear imaging
- Highly effective heat dissipation, prolonged life-span
- Reduced light loss by the beam splitter with special coating
- Highlights the unevenness on the object surface, eliminates reflection
Typical uses
- Scratches on high-reflective surfaces, bubbles and other defects inspection
- Inspection of breakage on chip parts and silicon wafers
- LED surface defect inspection
- Mark point positioning
- QR code recognition
- Dial angle measurement
All 16 models in the Coaxial light (LS-CXL-S19)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0121 | 16 x 14.6 mm | 23 | 45 | 16 x 14.6 | $109.00 | View |
| LS-CXL-0122 | 19 x 19 mm | 27 | 53.7 | 19 x 19 | $119.00 | View |
| LS-CXL-0123 | 26 x 25 mm | 31 | 59.5 | 26 x 25 | $139.00 | View |
| LS-CXL-0124 | 30 x 30 mm | 36 | 56 | 30 x 30 | $149.00 | View |
| LS-CXL-0125 | 39 x 38 mm | 47 | 70 | 39 x 38 | $179.00 | View |
| LS-CXL-0132 | 55 x 40 mm | 45 | 73 | 55 x 40 | $239.00 | View |
| LS-CXL-0126 | 61 x 60 mm | 70 | 90 | 61 x 60 | $269.00 | View |
| LS-CXL-0133 | 70 x 40 mm | 47 | 70 | 70 x 40 | $309.00 | View |
| LS-CXL-0127 | 80 x 80 mm | 85.5 | 114 | 80 x 80 | $369.00 | View |
| LS-CXL-0128 | 102 x 100 mm | 105 | 134 | 102 x 100 | $499.00 | View |
| LS-CXL-0134 | 120 x 65 mm | 70 | 111.2 | 120 x 65 | $589.00 | View |
| LS-CXL-0129 | 120 x 120 mm | 134 | 174 | 120 x 120 | $609.00 | View |
| LS-CXL-0130 | 140 x 140 mm | 146 | 188 | 140 x 140 | $739.00 | View |
| LS-CXL-0131 | 140 x 140 mm | 146 | 188 | 140 x 140 | $739.00 | View |
| LS-CXL-0136 | 180 x 130 mm | 140 | 180 | 180 x 130 | $1,039.00 | View |
| LS-CXL-0135 | 490 x 59 mm | 74 | 500 | 490 x 59 | $5,259.00 | View |
