Coaxial lights

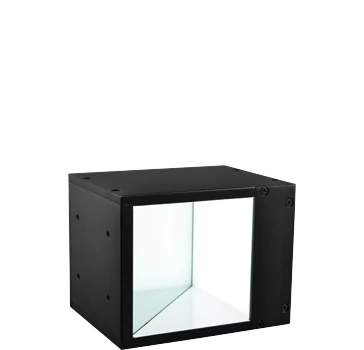

Classic coaxial lights (LS-CXL-S35)
- 12 models
- from $119.00
- Series LS-CXL-S35
The Classic coaxial lights (LS-CXL-S35) is a range of 12 coaxial lights from LumaSpec Vision, from $119.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 53.7 x 30 mm, White, 67 x 40 mm, White, 70 x 46 mm, Red, 70 x 46 mm, White, 73 x 63 mm, White, 90 x 60 mm, White, 90 x 70 mm, White, 114 x 91 mm, White, 134 x 111 mm, Red, 134 x 111 mm, White, 174 x 130 mm, White, 188 x 150 mm, White
- Voltage
- 24 V
- Colour
- Red, White
Features
- Aluminum alloy housing for good heat dissipation
- High-density LED layout for high brightness
- Available in custom sizes and wavelengths
All 12 models in the Classic coaxial lights (LS-CXL-S35)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0235 | 53.7 x 30 mm, White | 19 mm × 19 mm | White | 2.1 W | $119.00 | View |
| LS-CXL-0236 | 67 x 40 mm, White | 32 mm × 30 mm | White | 1.7 W | $149.00 | View |
| LS-CXL-0238 | 70 x 46 mm, White | 39 mm × 38 mm | White | 6.1 W | $179.00 | View |
| LS-CXL-0237 | 70 x 46 mm, Red | 39mm × 38 mm | Red | 2.4 W | $179.00 | View |
| LS-CXL-0239 | 90 x 60 mm, White | 50 mm × 50 mm | White | 5.4 W | $219.00 | View |
| LS-CXL-0240 | 73 x 63 mm, White | 55 mm × 40 mm | White | 6 W | $239.00 | View |
| LS-CXL-0241 | 90 x 70 mm, White | 61 mm × 60 mm | White | 8.1 W | $269.00 | View |
| LS-CXL-0242 | 114 x 91 mm, White | 80 mm × 80 mm | White | 17.3 W | $359.00 | View |
| LS-CXL-0244 | 134 x 111 mm, White | 100 mm × 102 mm | White | 28.8 W | $499.00 | View |
| LS-CXL-0243 | 134 x 111 mm, Red | 100 mm × 102 mm | Red | 14.4 W | $499.00 | View |
| LS-CXL-0245 | 174 x 130 mm, White | 120 mm × 120 mm | White | 34.2 W | $609.00 | View |
| LS-CXL-0246 | 188 x 150 mm, White | 140 mm × 140 mm | White | 47.5 W | $739.00 | View |
