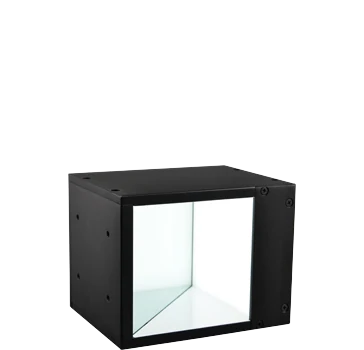

Coaxial Light, 70 x 46 mm, Red (LS-CXL-0237)
Model LS-CXL-0237
- ColourRed
- Emitting area39mm × 38 mm
- Size70 mm × 46 mm × 47 mm
- Power2.4 W
- Wavelength625 nm
$179.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial Light, 70 x 46 mm, Red. Aluminum alloy housing for good heat dissipation High-density LED layout for high brightness
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0237 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Red |
|---|---|
| Wavelength | 625 nm |
| Emitting area dimension | 39mm × 38 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 2.4 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical

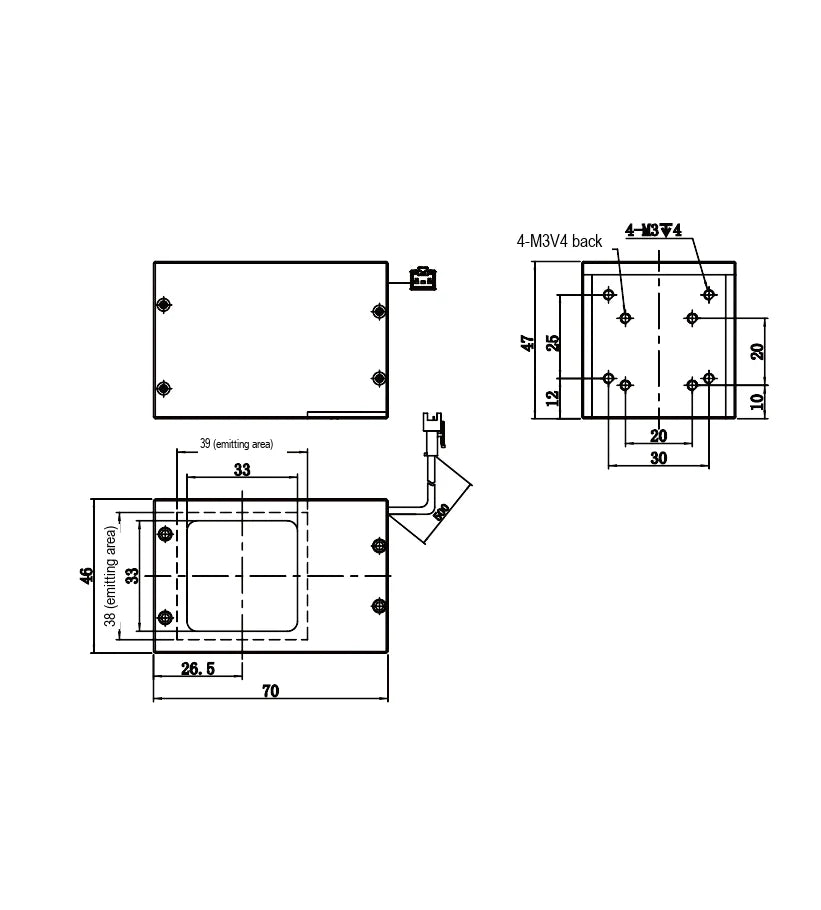

| Dimension | 70 mm × 46 mm × 47 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
