Coaxial lights

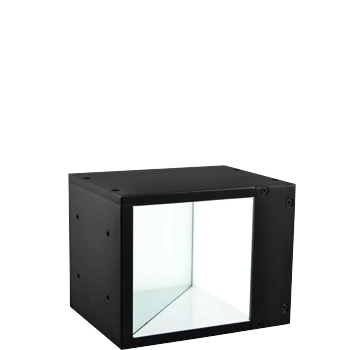

Coaxial Light, 73 x 63 mm, White (LS-CXL-0240)
Model LS-CXL-0240
- ColourWhite
- Emitting area55 mm × 40 mm
- Size73 mm × 63 mm × 45 mm
- Power6 W
$239.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial Light, 73 x 63 mm, White. Aluminum alloy housing for good heat dissipation High-density LED layout for high brightness
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0240 |
|---|
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000 ~ 7000K |
| Emitting area dimension | 55 mm × 40 mm |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 6 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |
Mechanical

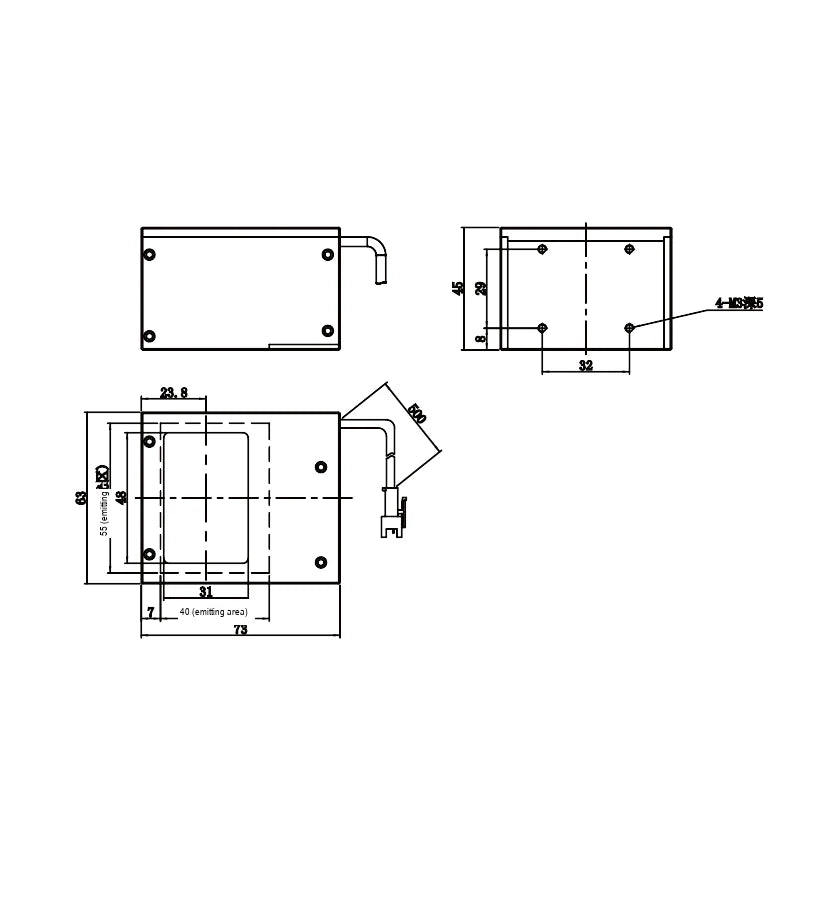

| Dimension | 73 mm × 63 mm × 45 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic coaxial lights (LS-CXL-S35) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0235 | 53.7 x 30 mm, White | $119.00 | Ships in 2-3 weeks | View |
| LS-CXL-0236 | 67 x 40 mm, White | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0238 | 70 x 46 mm, White | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0237 | 70 x 46 mm, Red | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0239 | 90 x 60 mm, White | $219.00 | Ships in 2-3 weeks | View |
| LS-CXL-0241 | 90 x 70 mm, White | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0242 | 114 x 91 mm, White | $359.00 | Ships in 2-3 weeks | View |
| LS-CXL-0244 | 134 x 111 mm, White | $499.00 | Ships in 2-3 weeks | View |
| LS-CXL-0243 | 134 x 111 mm, Red | $499.00 | Ships in 2-3 weeks | View |
| LS-CXL-0245 | 174 x 130 mm, White | $609.00 | Ships in 2-3 weeks | View |
| LS-CXL-0246 | 188 x 150 mm, White | $739.00 | Ships in 2-3 weeks | View |
