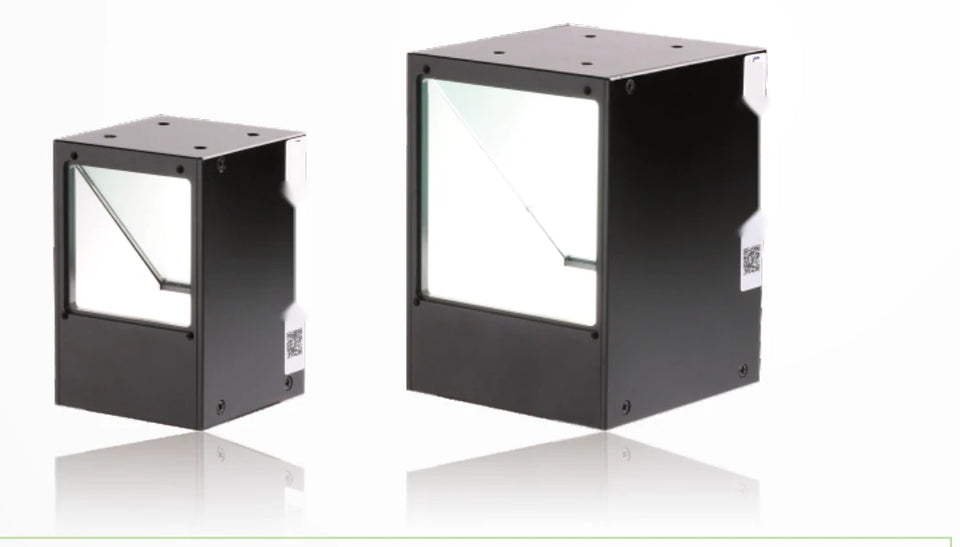

Coaxial light (LS-CXL-S07)
- 8 models
- from $119.00
- Series LS-CXL-S07
The Coaxial light (LS-CXL-S07) is a range of 8 coaxial lights from LumaSpec Vision, from $119.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 20 x 20 mm, 30 x 30 mm, 40 x 40 mm, 50 x 50 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm, 120 x 120 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Luminance up 50%
- Compact, high cost-effective
- Removes the double image effectively
- Cover wire jacket, anti-pull
- Can add dust-proof mirror
- Cover wire jacket, anti-pulls
- Can add dust-proof mirror, dust-proof
Typical uses
- Damage inspection of chips and wafers
- Scratches on reflective surfaces
- Bar code / QR code recognition
- Printing and silk-screen inspection
- Imaging example: stitch inspection on components (LS-CXL-0025-W)
- The damage inspection of the chip, wafer
All 8 models in the Coaxial light (LS-CXL-S07)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0023 | 20 x 20 mm | 20 x 20 | 1.5W/1.5W | L54xW30xH30(mm) | $119.00 | View |
| LS-CXL-0024 | 30 x 30 mm | 30 x 30 | 2.9W/4.4W | L64xW40xH40(mm) | $149.00 | View |
| LS-CXL-0025 | 40 x 40 mm | 40 x 40 | 4.4W/4.4W | L74xW50xH50(mm) | $179.00 | View |
| LS-CXL-0026 | 50 x 50 mm | 50 x 50 | 6.5W/7.2W | L84xW60xH60(mm) | $219.00 | View |
| LS-CXL-0027 | 60 x 60 mm | 60 x 60 | 8.7W/10.8W | L94xW70xH70(mm) | $269.00 | View |
| LS-CXL-0028 | 80 x 80 mm | 80 x 80 | 15.2W/21.6W | L114W92xH90(mm) | $359.00 | View |
| LS-CXL-0029 | 100 x 100 mm | 100 x 100 | 24.5W/32.4W | L134xW112xH110(mm) | $479.00 | View |
| LS-CXL-0030 | 120 x 120 mm | 120 x 120 | 34.6W/45.4W | L154xW132xH130(mm) | $599.00 | View |
