Coaxial lights

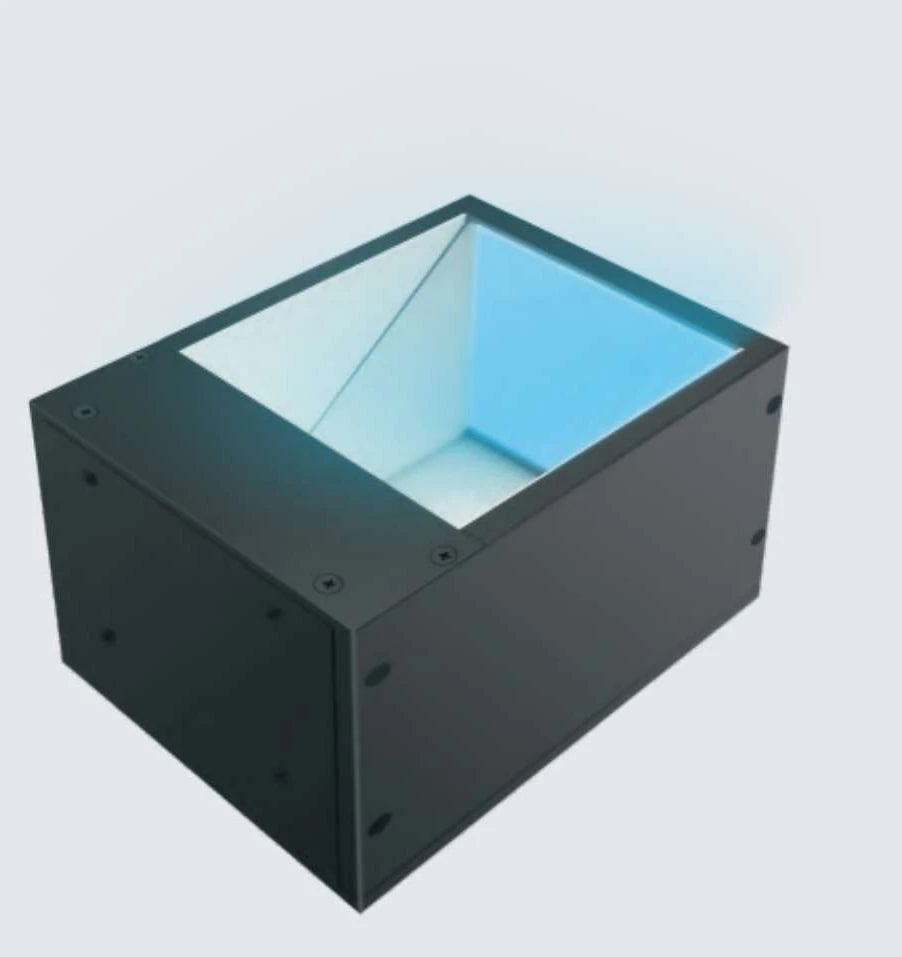

Coaxial light (LS-CXL-S28)
- 12 models
- from $149.00
- Series LS-CXL-S28
The Coaxial light (LS-CXL-S28) is a range of 12 coaxial lights from LumaSpec Vision, from $149.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 30 x 30 mm, 40 x 40 mm, 60 x 60 mm, 80 x 80 mm, 100 x 100 mm, 120 x 120 mm, 140 x 140 mm, 180 x 100 mm, 180 x 130 mm, 200 x 60 mm, 290 x 110 mm, 300 x 200 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Sharp imaging, high brightness, good uniformity
- Size, emitting area and mounting holes can be customised
Typical uses
- Laser marking on wafers
- Engraved characters on metal surfaces, bearings and beverage cans
- 2D codes printed on metal and glass plates
All 12 models in the Coaxial light (LS-CXL-S28)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-CXL-0186 | 30 x 30 mm | 30 x 30 | 3.5 | 2 | $149.00 | View |
| LS-CXL-0187 | 40 x 40 mm | 40 x 40 | 5 | 3 | $179.00 | View |
| LS-CXL-0188 | 60 x 60 mm | 60 x 60 | 5 | 5 | $269.00 | View |
| LS-CXL-0189 | 80 x 80 mm | 80 x 80 | 9.5 | 6.5 | $369.00 | View |
| LS-CXL-0190 | 100 x 100 mm | 100 x 100 | 15 | 12 | $479.00 | View |
| LS-CXL-0191 | 120 x 120 mm | 120 x 120 | 19 | 19 | $609.00 | View |
| LS-CXL-0192 | 140 x 140 mm | 140 x 140 | 26 | 25 | $739.00 | View |
| LS-CXL-0194 | 180 x 100 mm | 180 x 100 | 30 | 30 | $1,029.00 | View |
| LS-CXL-0195 | 180 x 130 mm | 180 x 130 | 48 | 48 | $1,039.00 | View |
| LS-CXL-0193 | 200 x 60 mm | 200 x 60 | 16.5 | 12 | $1,199.00 | View |
| LS-CXL-0196 | 290 x 110 mm | 290 x 110 | 76 | 35 | $2,159.00 | View |
| LS-CXL-0197 | 300 x 200 mm | 300 x 200 | 72 | 50.4 | $2,329.00 | View |
