Representative photo of this series
Coaxial lights

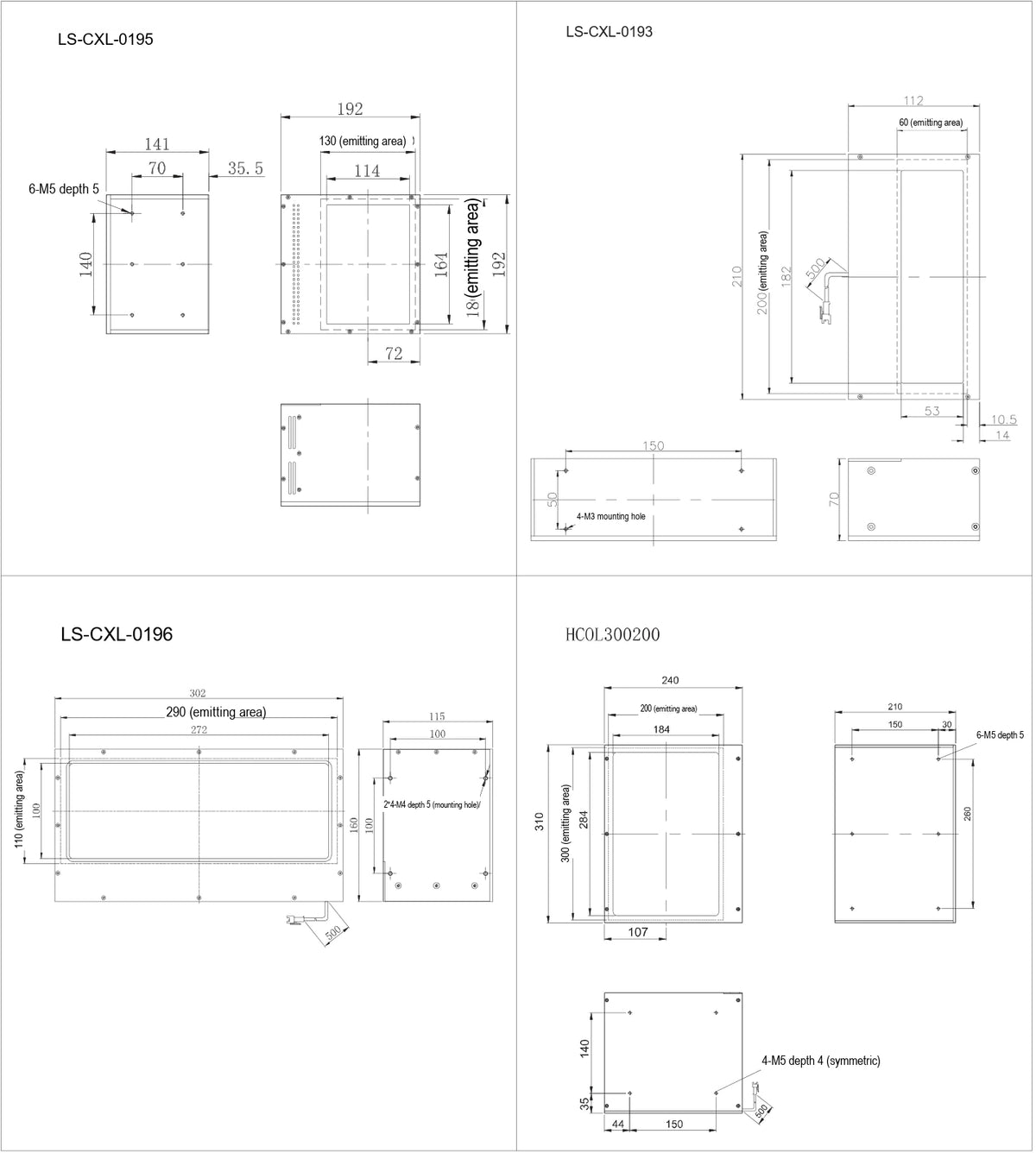

180 x 130 mm Coaxial light, 525 nm (LS-CXL-0195)
Model LS-CXL-0195
- ColourRed, Green, Blue, White
- Emitting area180 x 130 mm
- Voltage24 V
- Cable length500 mm
$1,039.00
Ships in 2-3 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
A high-density LED array emits high-intensity, even light; a semi-transparent mirror with a special coating puts the light reflected from the workpiece on the same axis as the camera, eliminating reflections (ghosting) in the image. Very even light distribution, suited to scratch inspection on mirror-finished workpiece surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0195 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 180 x 130 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T |
|---|---|
| Power, green / blue / white (W) | 48 |
| Power, red (W) | 48 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142, LS-CTL-0526, LS-CTL-0333 |
Mechanical
| Shipping weight | 2.00 kg |
|---|
Other models in the Coaxial light (LS-CXL-S28) series
See all 12 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0186 | 30 x 30 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0187 | 40 x 40 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0188 | 60 x 60 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0189 | 80 x 80 mm | $369.00 | Ships in 2-3 weeks | View |
| LS-CXL-0190 | 100 x 100 mm | $479.00 | Ships in 2-3 weeks | View |
| LS-CXL-0191 | 120 x 120 mm | $609.00 | Ships in 2-3 weeks | View |
| LS-CXL-0192 | 140 x 140 mm | $739.00 | Ships in 2-3 weeks | View |
| LS-CXL-0194 | 180 x 100 mm | $1,029.00 | Ships in 2-3 weeks | View |
| LS-CXL-0193 | 200 x 60 mm | $1,199.00 | Ships in 2-3 weeks | View |
| LS-CXL-0196 | 290 x 110 mm | $2,159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0197 | 300 x 200 mm | $2,329.00 | Ships in 2-3 weeks | View |
