Coaxial lights

19 x 19 mm Coaxial light (LS-CXL-0122)

Model LS-CXL-0122

ColourRed, Green, Blue, White
Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm

$119.00

Ships in 2-3 weeks

0.2 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Coaxial light with high uniformity and clear imaging; efficient heat dissipation prolongs life, and a specially coated beam splitter reduces light loss. It highlights unevenness on the object surface and eliminates reflection.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0122
Optional accessories	Extension cable
Service life	Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
L (mm)	53.7
W (mm)	30
H (mm)	27

Interfaces and I/O

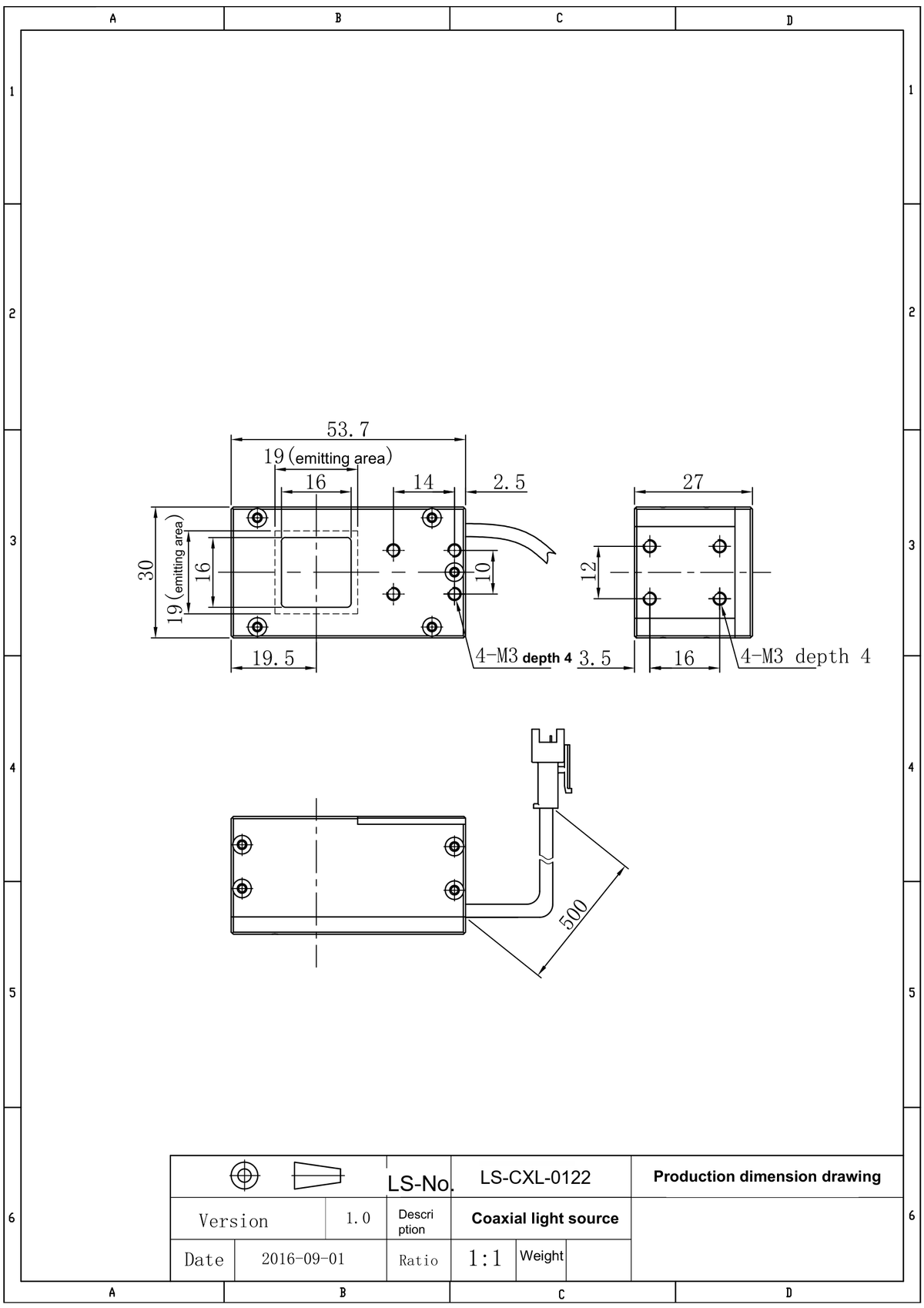

Cable length	500 mm (drawings)

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Luminous size (mm)	19 x 19

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)	0.9
Power G/B/W (W)	1.8
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125

Mechanical

Shipping weight	0.20 kg

Downloads

Datasheet (PDF)LS-CXL-0122 · 852 KB

Features

High uniformity, clear imaging
Highly effective heat dissipation, prolonged life-span
Reduced light loss by the beam splitter with special coating
Highlights the unevenness on the object surface, eliminates reflection

Applications

Scratches on high-reflective surfaces, bubbles and other defects inspection
Inspection of breakage on chip parts and silicon wafers
LED surface defect inspection
Mark point positioning
QR code recognition
Dial angle measurement
PCB inspection
LED lampholder positioning
Laser marking character inspection
