Representative photo of this series

Coaxial lights

180 x 130 mm Coaxial light, 520-530 nm (LS-CXL-0136)

Model LS-CXL-0136

ColourRed, Green, Blue, White
Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm

$1,039.00

Ships in 2-3 weeks

1.9 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Coaxial light with high uniformity and clear imaging; efficient heat dissipation prolongs life, and a specially coated beam splitter reduces light loss. It highlights unevenness on the object surface and eliminates reflection.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0136
Optional accessories	Extension cable
Service life	Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions
L (mm)	180
W (mm)	190
H (mm)	140

Interfaces and I/O

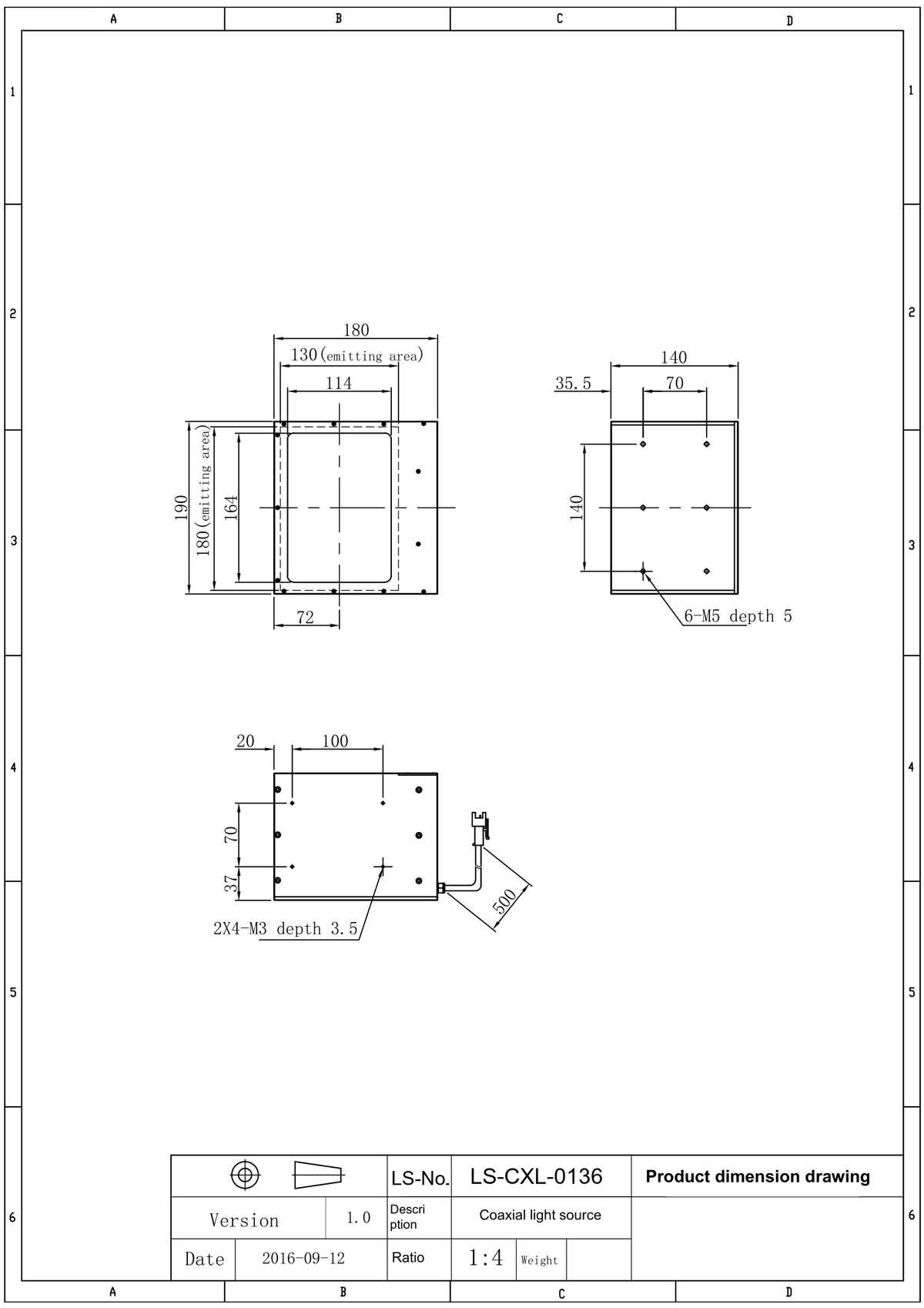

Cable length	500 mm (drawings)

Light

Wavelength red	620-630 nm
Wavelength green	520-530 nm
Wavelength blue	465-475 nm
Colour temperature white	6000-6500 K
Wavelength IR	850-940 nm
Wavelength UV	365-405 nm
Luminous size (mm)	180 x 130

Environment and compliance

Storage temperature	-20 to 60 °C
Operating temperature	0 to 40 °C
Humidity	20-85 %RH (non-condensing)

Electrical

Controller	LS-CTL-S125 series (the selected controller should match the power of the light source)
Power R (W)	40
Power G/B/W (W)	44
Recommended controller	LS-CTL-S69, LS-CTL-S28, LS-CTL-S125

Mechanical

Shipping weight	1.90 kg

Downloads

Datasheet (PDF)LS-CXL-0136 · 852 KB

Features

High uniformity, clear imaging
Highly effective heat dissipation, prolonged life-span
Reduced light loss by the beam splitter with special coating
Highlights the unevenness on the object surface, eliminates reflection

Applications

Scratches on high-reflective surfaces, bubbles and other defects inspection
Inspection of breakage on chip parts and silicon wafers
LED surface defect inspection
Mark point positioning
QR code recognition
Dial angle measurement
PCB inspection
LED lampholder positioning
Laser marking character inspection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Coaxial light (LS-CXL-S19) series

See all 16 models

Model	Size / key data	Price	Availability	Link
LS-CXL-0121	16 x 14.6 mm	$109.00	Ships in 2-3 weeks	View
LS-CXL-0122	19 x 19 mm	$119.00	Ships in 2-3 weeks	View
LS-CXL-0123	26 x 25 mm	$139.00	Ships in 2-3 weeks	View
LS-CXL-0124	30 x 30 mm	$149.00	Ships in 2-3 weeks	View
LS-CXL-0125	39 x 38 mm	$179.00	Ships in 2-3 weeks	View
LS-CXL-0132	55 x 40 mm	$239.00	Ships in 2-3 weeks	View
LS-CXL-0126	61 x 60 mm	$269.00	Ships in 2-3 weeks	View
LS-CXL-0133	70 x 40 mm	$309.00	Ships in 2-3 weeks	View
LS-CXL-0127	80 x 80 mm	$369.00	Ships in 2-3 weeks	View
LS-CXL-0128	102 x 100 mm	$499.00	Ships in 2-3 weeks	View
LS-CXL-0134	120 x 65 mm	$589.00	Ships in 2-3 weeks	View
LS-CXL-0129	120 x 120 mm	$609.00	Ships in 2-3 weeks	View
LS-CXL-0130	140 x 140 mm	$739.00	Ships in 2-3 weeks	View
LS-CXL-0131	140 x 140 mm	$739.00	Ships in 2-3 weeks	View
LS-CXL-0135	490 x 59 mm	$5,259.00	Ships in 2-3 weeks	View
