High precision coaxial light (LS-CXL-S08)
  • High precision coaxial light (LS-CXL-S08)

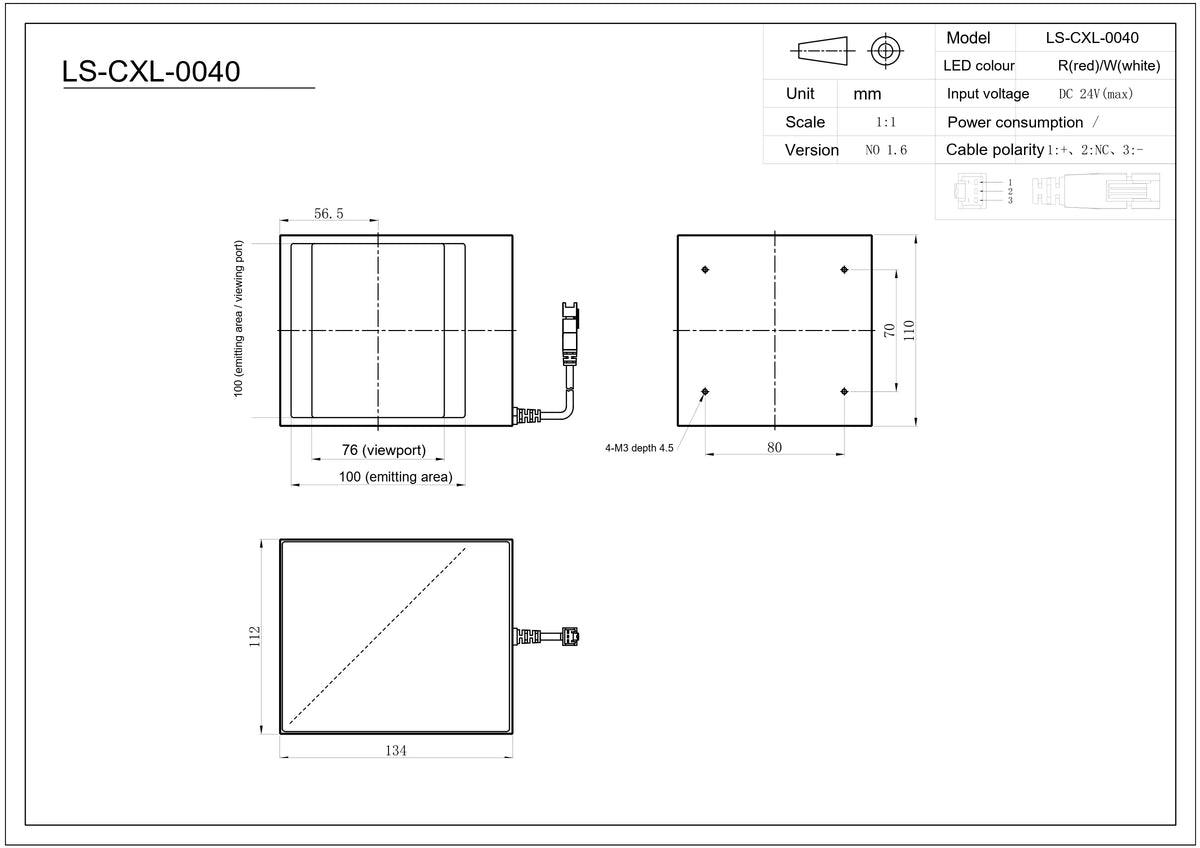

  • LS-CXL-0040 dimensions (mm)

Representative photo of this series

Coaxial lights

High precision coaxial light, 134 x 110 x 112 mm (LS-CXL-0040)

Model LS-CXL-0040

  • ColourRed, Blue, Green, White
  • SizeL134xW110xH112(mm)
  • Voltage24V
  • Power24.5W/32.4W
$689.00

Ships in 2-3 weeks

1.0 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

High precision coaxial light, 134 x 110 x 112 mm (LS-CXL-0040)LS-CXL-0040

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision. More suitable for tiny object inspection. Compact structure, suitable for limited space environment.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CXL-0040
NoteUV & IR light can be customized as required.
Viewport (camera hole)100 x 76 mm

Interfaces and I/O

Cable polarity1: +, 2: NC, 3: -

Light

LED colourR(red)/W(white)

Electrical

Voltage24V
Power24.5W/32.4W
Input voltageDC 24V (max)

Mechanical

DimensionL134xW110xH112(mm)
Mounting holes4-M3 depth 4.5
Shipping weight1.00 kg

Other models in the High precision coaxial light (LS-CXL-S08) series

See all 11 models
ModelSize / key dataPriceAvailabilityLink
LS-CXL-0031 Red, Blue, Green, White · 13 x 13 mm $169.00 Ships in 2-3 weeks View
LS-CXL-0032 Red, Blue, Green, White · 18 x 18 mm $189.00 Ships in 2-3 weeks View
LS-CXL-0033 Red, Blue, Green, White · L54xW30xH30mm) $239.00 Ships in 2-3 weeks View
LS-CXL-0034 Red, Blue, Green, White · 28 x 28 mm $249.00 Ships in 2-3 weeks View
LS-CXL-0035 Red, Blue, Green, White · L64xW40xH40(mm) $279.00 Ships in 2-3 weeks View
LS-CXL-0036 Red, Blue, Green, White · L74xW50xH50(mm) $329.00 Ships in 2-3 weeks View
LS-CXL-0037 Red, Blue, Green, White · L84xW60xH60(mm) $389.00 Ships in 2-3 weeks View
LS-CXL-0038 Red, Blue, Green, White · L94xW70xH70(mm) $439.00 Ships in 2-3 weeks View
LS-CXL-0039 Red, Blue, Green, White · L114xW90xH92(mm) $559.00 Ships in 2-3 weeks View
LS-CXL-0041 Red, Blue, Green, White · L154xW130xH132(mm) $829.00 Ships in 2-3 weeks View
