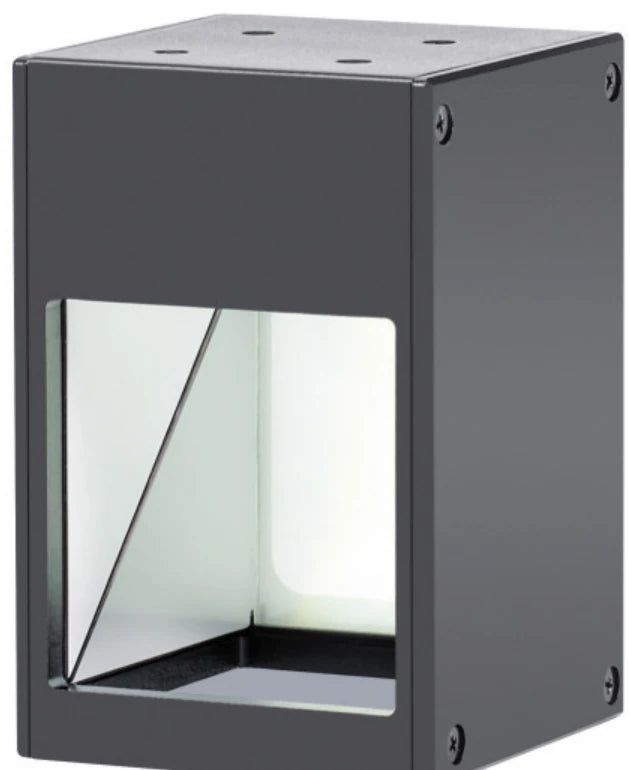

Representative photo of this series
Coaxial lights
39 x 38 mm High-definition coaxial light (LS-CXL-0140)
Model LS-CXL-0140-R
- ColourRed, Green, Blue, White
- Voltage24 V
- Wavelength red620-630 nm
- Wavelength green520-530 nm
$179.00
Ships in 2-3 weeks
0.3 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial light with a light path and optical design different from conventional coaxial lights, eliminating the ghosting caused by refraction and transmission in the light path, so images stay sharp without distortion at small fields of view and high magnification. Can be made in different wavelengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0140 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| L (mm) | 70 |
| W (mm) | 46 |
| H (mm) | 47 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Illuminance chart reference | LS-CXL-0124-W-ZT; uniformity LS-CXL-0124-W-ZT, FOV 50 x 50 mm at LWD 5/10/15 mm |
| Luminous size (mm) | 39 x 38 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series (the selected controller must match the light power) |
|---|---|
| Power R (W) | 2.7 |
| Power G/B/W (W) | 5.4 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical
| Shipping weight | 0.30 kg |
|---|
Other models in the High-definition coaxial light (LS-CXL-S20) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0137 | 16 x 14.6 mm | $109.00 | Ships in 2-3 weeks | View |
| LS-CXL-0138 | 19 x 19 mm | $119.00 | Ships in 2-3 weeks | View |
| LS-CXL-0139 | 30 x 30 mm | $149.00 | Ships in 2-3 weeks | View |
