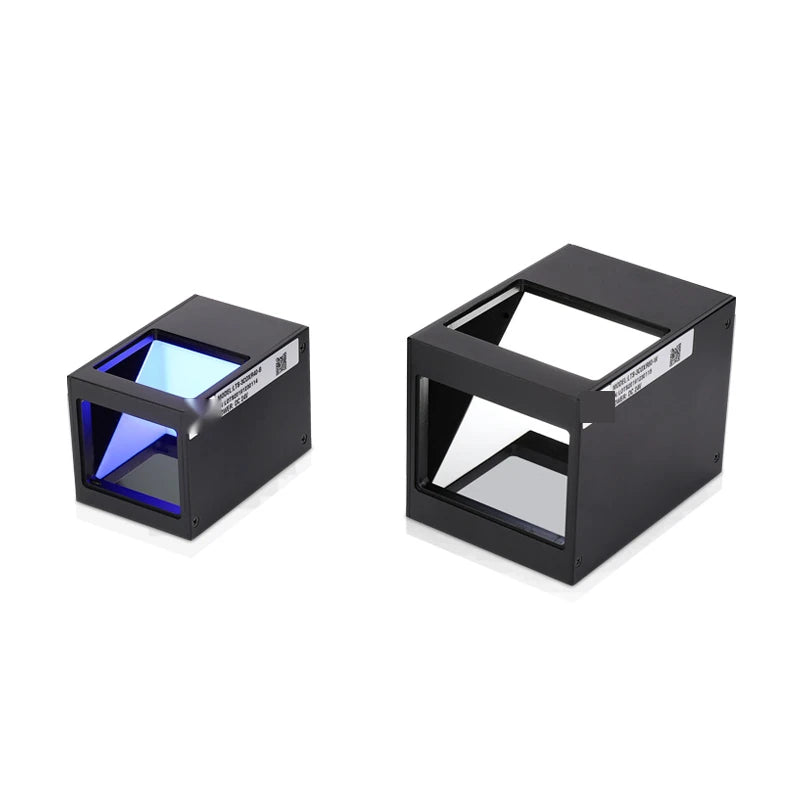

Representative photo of this series

Coaxial lights

Right-angle coaxial light, 114 x 92 x 92 mm (LS-CXL-0047)

Model LS-CXL-0047

ColourRed, Blue, Green, White
Emitting area80 x 70 mm
SizeL114xW92xH92(mm)
Voltage24V
Power15.2W/21.6W

$559.00

Ships in 2-3 weeks

0.75 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Compact,space saving. 90° between ray and CCD camera, compact structure.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CXL-0047
Note	UV & IR light can be customized as required.

Interfaces and I/O

Cable polarity	1: +, 2: NC, 3: -

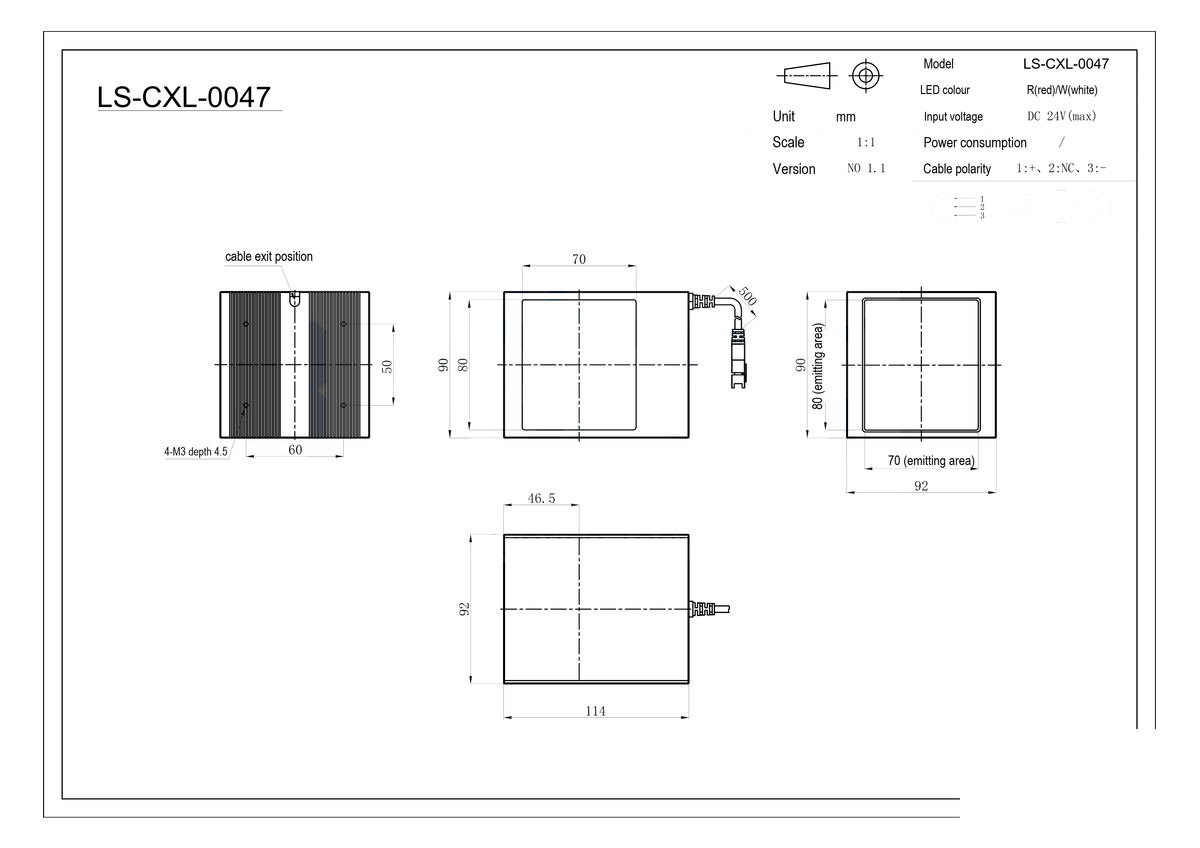

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	80 x 70

Electrical

Voltage	24V
Power	15.2W/21.6W
Input voltage	DC 24V (max)

Mechanical

Dimension	L114xW92xH92(mm)
Mounting holes	4-M3 depth 4.5
Shipping weight	0.75 kg

Other models in the Right-angle coaxial light (LS-CXL-S09) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-CXL-0042	Red, Blue, Green, White · 20 x 16 mm	$239.00	Ships in 2-3 weeks	View
LS-CXL-0043	Red, Blue, Green, White · 30 x 20 mm	$279.00	Ships in 2-3 weeks	View
LS-CXL-0044	Red, Blue, Green, White · 40 x 33 mm	$329.00	Ships in 2-3 weeks	View
LS-CXL-0045	Red, Blue, Green, White · 50 x 38 mm	$389.00	Ships in 2-3 weeks	View
LS-CXL-0046	Red, Blue, Green, White · L94xW70xH70(mm)	$439.00	Ships in 2-3 weeks	View
LS-CXL-0048	Red, Blue, Green, White · 100 x 76 mm	$689.00	Ships in 2-3 weeks	View
