35 x 35 mm Coaxial light, standard type (LS-CXL-0053)

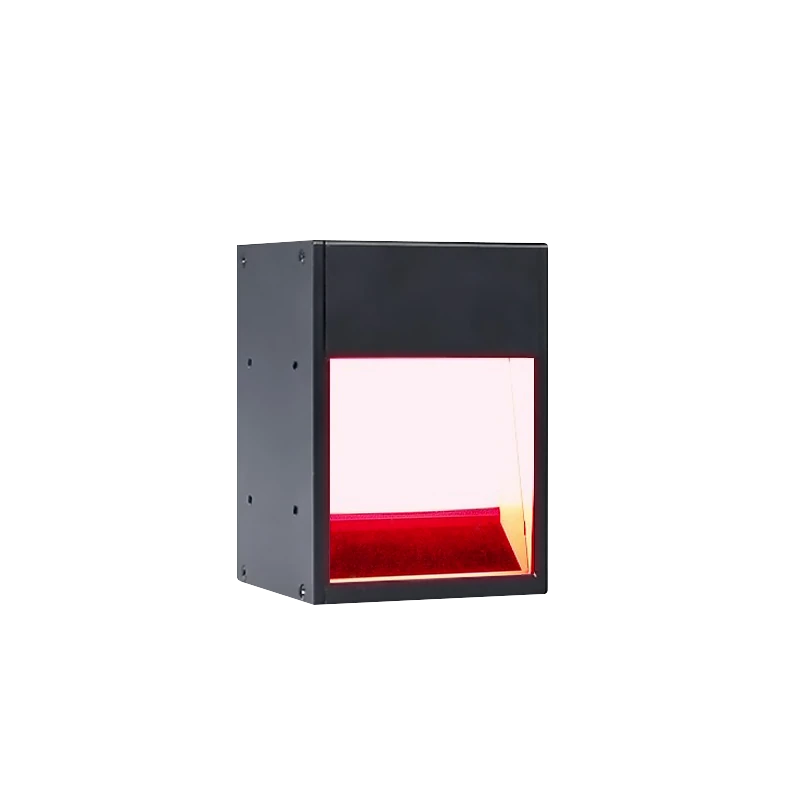

  • 35 x 35 mm Coaxial light, standard type (LS-CXL-0053)

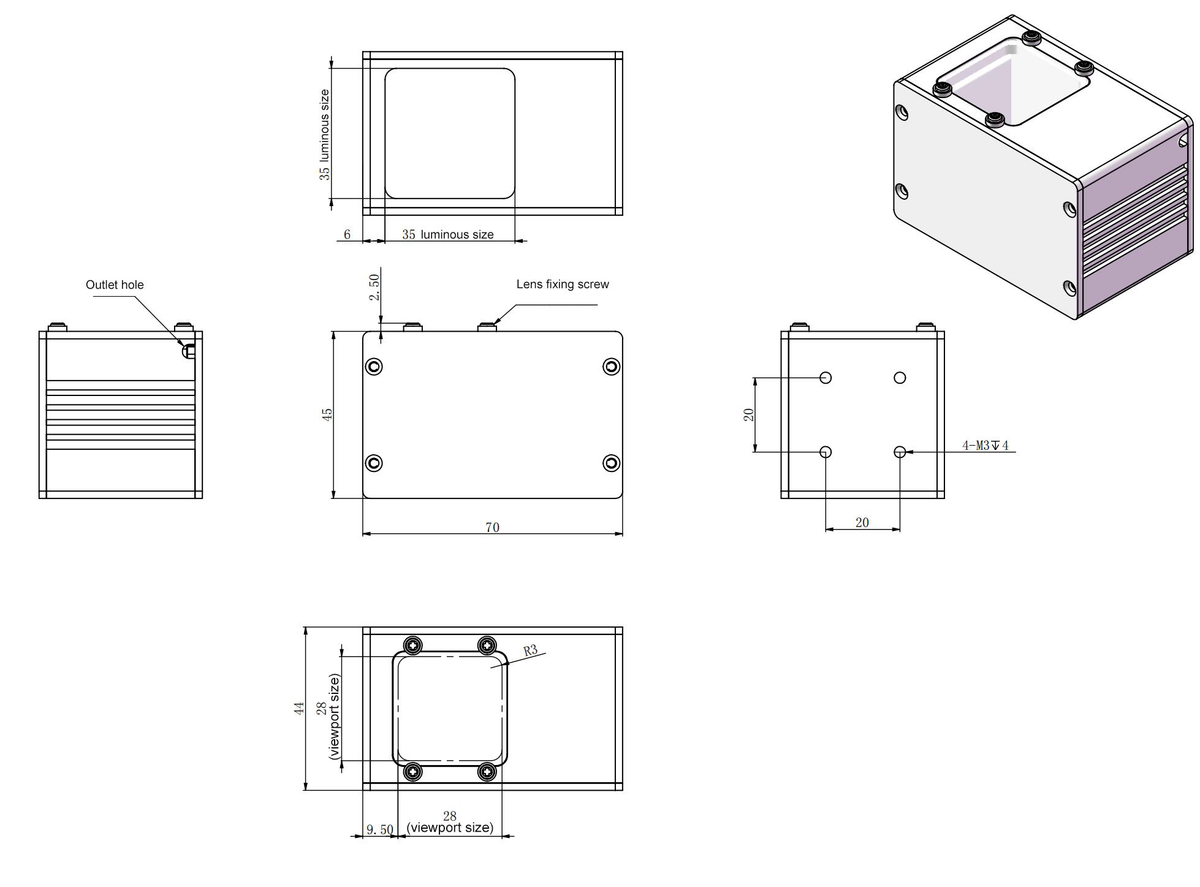

  • LS-CXL-0053 dimensions (mm)

Colour shown for illustration; the actual product may differ

Coaxial lights

35 x 35 mm Coaxial light, standard type (LS-CXL-0053)

Model LS-CXL-0053

  • ColourRed, Blue, White
  • Voltage24 V
  • Connector3-pin flat
  • LED typeSMD
$159.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 x 35 mm Coaxial light, standard type (LS-CXL-0053)LS-CXL-0053

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Coaxial light consists of uniformly distributed LED light emitting units and special lenses. Support customized color, wavelength, luminescent surface size, etc.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CXL-0053
Light typeStandard type
CategoryCoaxial light
Terminal PlugFlat head 3PIN2 pin
CoolingNaturalair cooling
Electrical insulation capacityDC500V Insulation resistance>20 megohms
Pressure Resistance RequirementsAC1000 V10mA/5S
Flammability RatingIEC60707
Value-added ServicesOne year free technical support

Interfaces and I/O

Cable length0.5m
Connector Definition1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)1.Light source extension cable 2.Connector adapter cable

Light

LED typeSMD
Luminous size (mm)35x35
ColorRed/Blue/White
Wavelengthred: 620-635nm; white: —; blue: 465-470nm
Color temperaturered: —; white: 6000-6500K; blue: —
Brightness Controller (optional)1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and HumidityTemperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
LifespanUnder our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power toleranceactual product power within ±10% of the table is the normal range
Voltage (V)24
Power red (W)2.6
Power blue/white (W)3.4

Mechanical

Shell materialAluminum Alloy (Oxidative blackened surface)
Shell Hardness ParametersStatic load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Boundary dimension L x W x H (mm)70x44x47.5
Shipping weight0.30 kg
