Coaxial lights
50 x 50 mm Coaxial light, standard type (LS-CXL-0054)
Model LS-CXL-0054-R
- ColourRed, Blue, White
- Voltage24 V
- LED typeSMD
- Wire length500 mm (drawing)
$219.00
Ships in 2-3 weeks
0.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cxl-0054
LS-CXL-0054 brings a 50 x 50 mm emitting area to a coaxial light series of 7 sizes; a smaller emitting area than the 60 x 60 mm version, for smaller parts and tighter spaces (for fields of view up to about 50 x 50 mm).
LS-CXL-0054: luminous size 50x50 mm, boundary dimension L x W x H 100x60x67.5 mm, power red 4.5 W.
Coaxial light consists of uniformly distributed LED light emitting units and special lenses. Support customized color, wavelength, luminescent surface size, etc.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0054 |
|---|---|
| Working life | white: 30000 hours, red: 30000 hours (the value varies according to the use environment) |
| Light type | Standard type |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 50x50 |
| Wavelength red | 620-630 nm |
| Wavelength blue | 460-470 nm |
| Colour temperature white | 6000-7500 K |
Environment and compliance
| Operating environment (indoor) | temperature 0~40 °C, humidity 20~85% (non condensing) |
|---|
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 4.5 |
| Power blue/white (W) | 5.7 |
Mechanical
| Wire length | 500 mm (drawing) |
|---|---|
| Boundary dimension L x W x H (mm) | 100x60x67.5 |
| Shipping weight | 0.50 kg |
Engineering data
Drive and fit the LS-CXL-0054
Current at 24 V238 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 5.7 W
Emitting area50 × 50 mmKeep the camera's field of view inside it for an even background.
Power per 100 cm²≈ 22.8 WCalculated: 5.7 W over a 50 × 50 mm emitting area
Operating temperature0 to 40 °C
Cable length500 mmdrawing
Mounting and installation

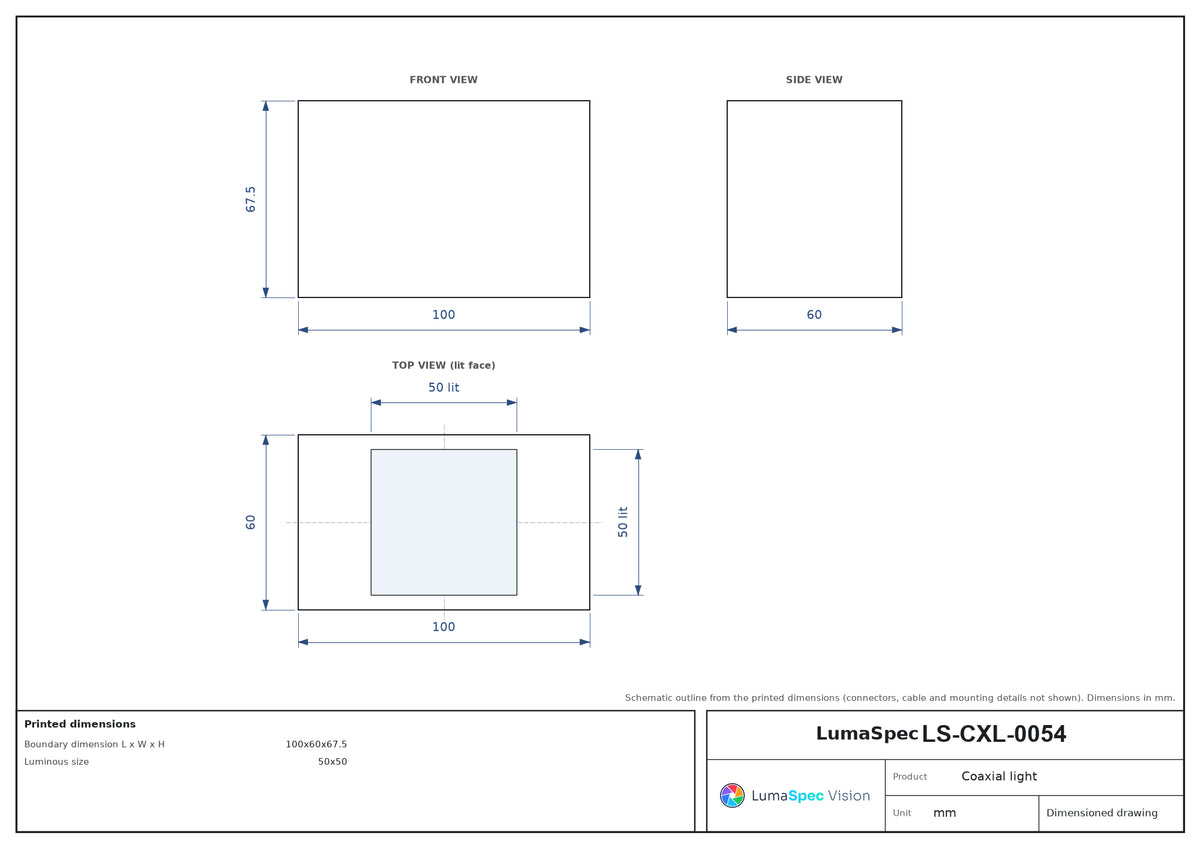

| Mounting | See the dimension drawing |
|---|---|
| Cable | 0.5 m |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part50 x 50 mm Coaxial light, standard type (LS-CXL-0054)
$219.00
-
Controllers for this light
Digital power supply controller, 8 ch, 2.7 A total output (LS-CTL-0336)
$609.00
Set total $828.00
Added to your quote list.
Controllers for this light
This 5.7 W light uses 70 % of one channel (about 8.1 W, from the rated output)
Analog power supply controller, 2 ch, 0.7 A per channel
LS-CTL-0509
- Channels 2
- Output 0-24 V
$169.00
Ships in 2-3 weeks
This 5.7 W light uses 68 % of one channel (about 8.4 W, from the rated output)
Digital controller, 16 ch, 120 W
LS-CTL-0412
- Channels 16
- Output Constant voltage 24 V
$1,019.00
Ships in 2-3 weeks
This 5.7 W light uses 76 % of one channel (about 7.5 W, from the rated output)
6-Channel Digital LED light controller, 16-24V, 2.5 A total output
LS-CTL-0315
- Output 16~24 V
- Input AC100-240 V 50/60 Hz
$549.00
Ships in 2-3 weeks
This 5.7 W light uses 57 % of one channel (about 10 W, from the rated output)
PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger
LS-CTL-0288
- Output 24 VDC
- Input 12 VDC
$239.00
Ships in 2-3 weeks
This 5.7 W light uses 54 % of one channel (about 10.5 W, from the rated output)
Analog power supply controller, 1 ch, 0.7 A per channel
LS-CTL-0508
- Channels 1
- Output 0-24 V
$139.00
Ships in 2-3 weeks
This 5.7 W light uses 34 % of one channel (about 16.8 W, from the rated output)
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0182, the same type of part
Packaging, labels and print
Colour appearance on a bottle cap
Control the colour recipe before turning a lighter patch into a reject decision.Light in sourceLS-CXL-0182 · whiteExplore the study
Set up with the LS-CXL-0126, the same type of part
Electronics and devices
Chip bond wires
Coaxial light keeps the pads bright so each wire can be traced end to end.Light in sourceLS-CXL-0126 · whiteExplore the study
Set up with the LS-CXL-0006, the same type of part
Electronics and devices
Reflective tablet-shell edge under coaxial light
A clear contour still needs an unambiguous physical datum.Proposed light housing (spec)111 × 50 × 50 mmExplore the study
Before you buy
Questions about the LS-CXL-0054
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0054?
Fit-tested for this 5.7 W light: LS-CTL-0336 (about 8.1 W per channel, about 30 % headroom), LS-CTL-0509 (about 8.4 W per channel, about 32 % headroom), LS-CTL-0412 (about 7.5 W per channel, about 24 % headroom) and LS-CTL-0315 (about 10 W per channel, about 43 % headroom).
What supply voltage and power does the LS-CXL-0054 need?
Voltage: 24 V; Power red: 4.5 W; Power blue/white: 5.7 W. That is about 0.24 A at 5.7 W on 24 V (calculated).
How does the LS-CXL-0054 differ from LS-CXL-0050?
Compared with LS-CXL-0050: power (red) 4.5 W here, 3.5 W there; power (blue, white) 5.7 W here, 4 W there.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0054: how to choose it, set it up and get a better image.
Dome lights for shiny, curved and wrinkled partsA dome light surrounds the part with even, diffuse light from almost every direction, so shiny, curved and wrinkled surfaces image as a smooth, even tone instead of a field of glints.
Which LED colour gives the best contrast in machine visionPick the light colour that makes the feature and its background reflect differently.
Multi wavelength light: sequence colours to get more from one cameraA multi-wavelength light puts several LED colours in one housing, each on its own channel.
Other models in the Coaxial light, standard type (LS-CXL-S10) series
See all 7 modelsHow this model compares
- Luminous size 50 x 50 mm; next smaller area 40 x 40 mm (LS-CXL-0051), larger 60 x 60 mm (LS-CXL-0052), of 7 sizes from 20 x 20 to 70 x 70 mm.
- Compared with LS-CXL-0050: power (red) 4.5 W here, 3.5 W there; power (blue, white) 5.7 W here, 4 W there.
Swipe to see all columns
| Model | Luminous size | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0049 | 20 x 20 mm | $119.00 | Ships in 2-3 weeks | View |
| LS-CXL-0050 | 30 x 30 mm | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0053 | 35 x 35 mm | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0051 | 40 x 40 mm | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0054This model | 50 x 50 mm | $219.00 | Ships in 2-3 weeks | |
| LS-CXL-0052 | 60 x 60 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0055 | 70 x 70 mm | $309.00 | Ships in 2-3 weeks | View |
