Light controllers

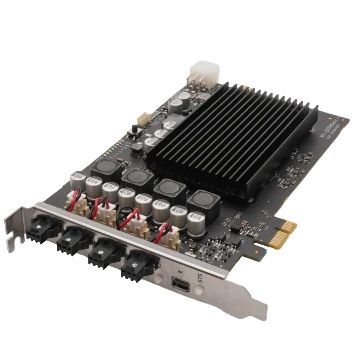

PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger (LS-CTL-0288)
Model LS-CTL-0288
- Output24 VDC
- Input12 VDC
- ControlSerial
- TriggerExternal trigger and internal trigger
$239.00
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
PCIe light controller card, 4 channels, 50 W input / 42 W output, With trigger. PCIe x1 interface, compatible with PCIe x4/8/16 slots; saves space compared with conventional light controllers Light outputs support PWM pulse or analog control
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0288 |
|---|---|
| Lighting mode | Continuous, strobe |
| PWM frequency | 125 KHz |
| Dimming mode | Software (client) |
| Lighting response time | <5 ms |
| Interconnect | PCI-E gen2 x 1 |
| Bus indicator | 1 |
| Cooling mode | Natural cooling |
Interfaces and I/O
| Communication protocol | Serial |
|---|---|
| Applicable product | Ring light, Bar light, Flat light, Coaxial light, etc., Supports lights up to 24 W |
| Power supply interface | ATX power connector |
| Digital I/O | 4 opto-isolated inputs |
| Lighting output connector | SMR-03V-BC |
Light
| Brightness level | 0 ~ 255 |
|---|
Environment and compliance
| Temperature | Operating temperature: 0 to 50 °C, Storage temp.: -20 to 60 °C |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Drive mode | Switchable digital or analog constant voltage |
|---|---|
| Strobe overdrive | Not supported |
| Channel | 4 |
| Trigger mode | External trigger and internal trigger |
| Input voltage | 12 VDC |
| Input current | 4.2 A |
| Output current | 1.75 A max |
| Output power | 42 W max |
| Output current for each channel | 1 A max |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Output voltage | 24 VDC |
Mechanical
| Dimension | 90 mm × 126.3 mm × 21.6 mm |
|---|---|
| Weight | Approx. 212 g (0.5 lb.) |
| Shipping weight (estimated) | 0.40 kg |
