Digital constant-voltage light controller, 60 W, 4 channels (LS-CTL-0290)
Model LS-CTL-0290
- Output24 VDC
- Input100 ~ 240 VAC, 50/60 Hz
- ControlSerial, UDP
- TriggerExternal trigger and internal trigger
$449.00
Ships in 2-3 weeks
1.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital constant-voltage light controller, 60 W, 4 channels. Flexible brightness control via panel buttons or software Device management and parameter configuration via serial or Ethernet
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0290 |
|---|---|
| Lighting mode | Continuous, strobe |
| PWM frequency | 125 KHz |
| Dimming mode | Control panel (via pressing button), software (serial port or network interface) |
| Lighting response time | 25 ~ 35 μs |
| Cooling mode | Fan cooling |
Interfaces and I/O
| Communication protocol | Serial, UDP |
|---|---|
| Applicable product | Ring light, bar light, flat light, coaxial light, etc. |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 network interface, DB9F serial port |
| Digital I/O | Opto-isolated input × 4, opto-isolated output × 4 |
| Lighting output connector | SMR-03V-BC |
Light
| Brightness level | 0 ~ 255 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Electrical
| Drive mode | Digital, constant voltage |
|---|---|
| Strobe overdrive | Not supported |
| Channel | 4 |
| Trigger mode | External trigger and internal trigger |
| Input voltage | 100 ~ 240 VAC, 50/60 Hz |
| Input current | 1.8 A (115VAC), 1 A (230VAC) |
| Output current | 2.5 A max |
| Output power | 60 W max |
| Output current for each channel | 2.5 A max |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Output voltage | 24 VDC |
Mechanical
| Dimension | 130 mm × 83.8 mm × 169.5 mm |
|---|---|
| Shell material | Plastic |
| Weight | Approx. 733 g (1.6 lb.) |
| Shipping weight (estimated) | 1.13 kg |

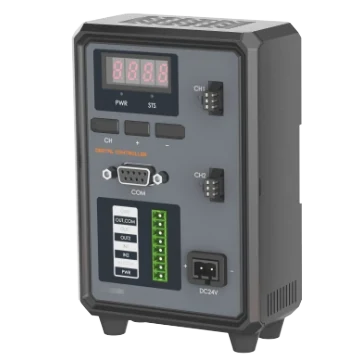

Photo shows a representative model of this series; see the specifications for this model.
