Digital constant-voltage light controller, 200W, 6 channels, SMR-03V-BC connector (LS-CTL-0303)
Model LS-CTL-0303
- Output24 VDC
- Input100 ~ 240 VAC, 50/60 Hz
- ControlRS-232
- Channels6 channels
$529.00
Ships in 2-3 weeks
0.91 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital constant-voltage light controller, 200W, 6 channels, SMR-03V-BC connector. Up to 6.25 A output current per channel 3 brightness control methods: panel knob, panel buttons and serial communication
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0303 |
|---|---|
| Lighting mode | Constant voltage |
| PWM frequency | 140 KHz |
| Dimming mode | Panel knob, Serial communication |
| Lighting response time | <10 μs |
| Cooling mode | Forced cooling (built-in fan) |
Interfaces and I/O
| Communication protocol | RS-232 |
|---|---|
| Applicable product | Ring light, Bar light, Flat light, Coaxial light |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | 6 inputs |
| Lighting output connector | SMR-03V-BC |
Light
| Brightness level | 0 ~ 255 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Ingress protection | IP30 (when properly installed) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | CE, RoHS |
Electrical
| Drive mode | Constant voltage |
|---|---|
| Strobe overdrive | Not supported |
| Channel | 6 |
| Trigger mode | External trigger supported, Internal trigger |
| Input voltage | 100 ~ 240 VAC, 50/60 Hz |
| Input current | 2.4 A |
| Output current | 8.4 A max |
| Output power | 200 W max |
| Output current for each channel | 3 A max |
| Trigger in | Level signal DC 5 to 24 V / 6 mA |
| Trigger out | Not supported |
| Output voltage | 24 VDC |
Mechanical

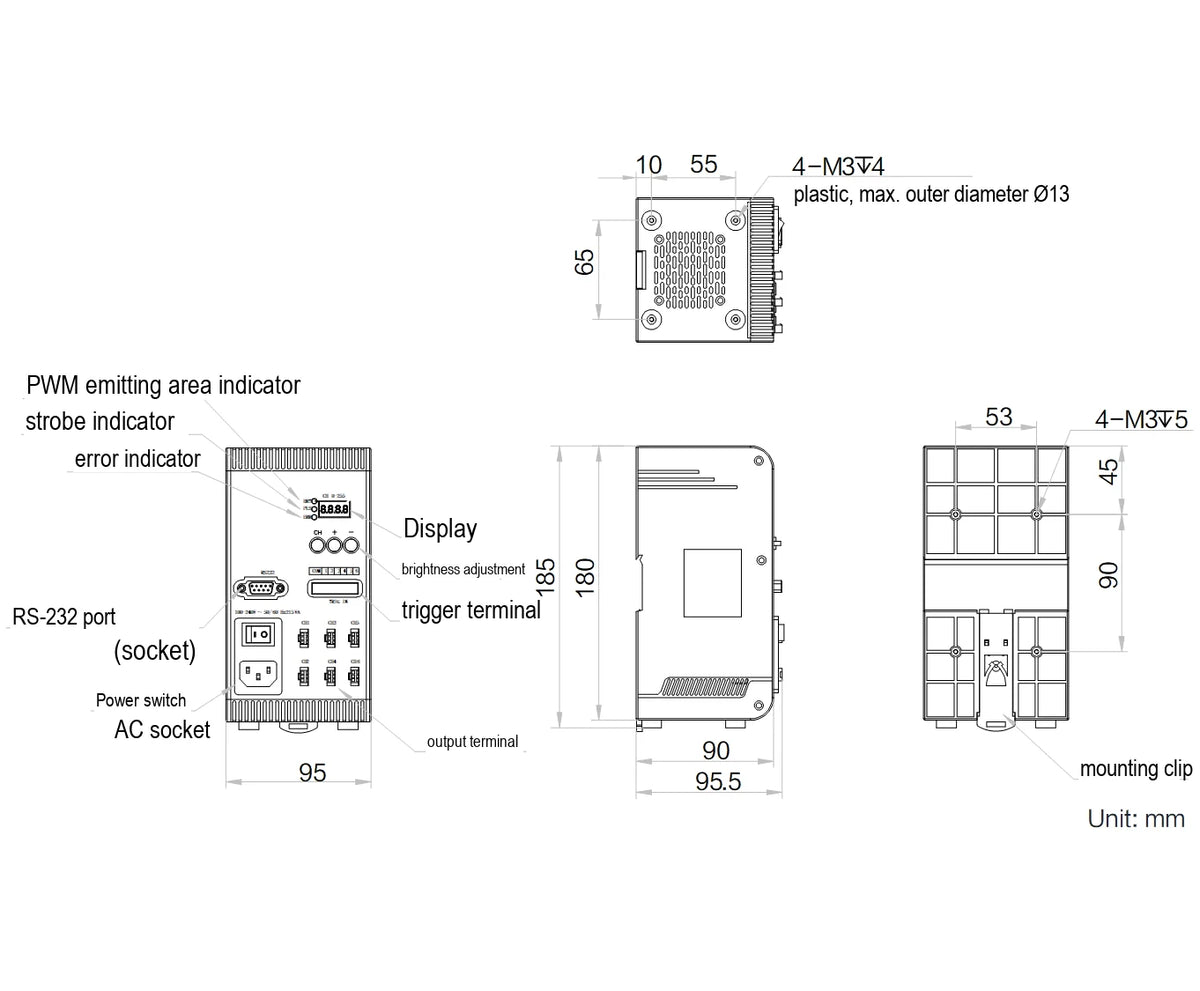

| Dimension | 95.5 mm × 95 mm × 185 mm |
|---|---|
| Shell material | Plastic |
| Weight | Approx. 580 g |
| Shipping weight (estimated) | 0.91 kg |
