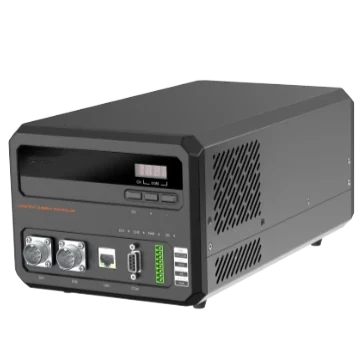

Digital Light Controller, 2 channel, 500W/48V (LS-CTL-0298)
Model LS-CTL-0298
- Output48 VDC
- Input100 VAC to 240 VAC, 50 Hz/60 Hz
- ControlUDP, Serial
- TriggerExternal trigger and internal trigger
$729.00
Ships in 2-3 weeks
7.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital Light Controller, 2 channel, 500W/48V. Adopts constant current to improve light source stability. Adopts buttons and display to have quick operations.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0298 |
|---|---|
| Lighting mode | Continuous, strobe |
| Dimming mode | Control panel (via pressing button), software (serial port or network interface) |
| Lighting response time | < 10 μs |
| Cooling mode | Fan cooling |
Interfaces and I/O
| Communication protocol | UDP, Serial |
|---|---|

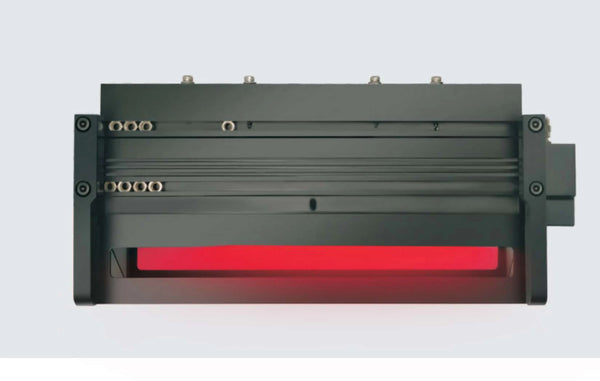

| Applicable product | Line scan light (with 19M-8H and 19M-8A connector); Vcsel line scan light only supports connection to a single channel. |
| Power supply interface | C13 220 VAC interface |
| Console interface | RJ45 network interface, DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
| Lighting output connector | 19M-8H (Female) × 2 |
Light
| Brightness level | 0 to 255 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Electrical
| Drive mode | Digital, constant current |
|---|---|
| Channel | 2-channel |
| Trigger mode | External trigger and internal trigger |
| Input voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Input current | 5.3 A (115 VAC), 2.65 A (230 VAC) |
| Output voltage | 48 VDC |
| Output current | Max. 10 A |
| Output power | Max. 500 W |
| Output current for each channel | Max. 8 A |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
Mechanical

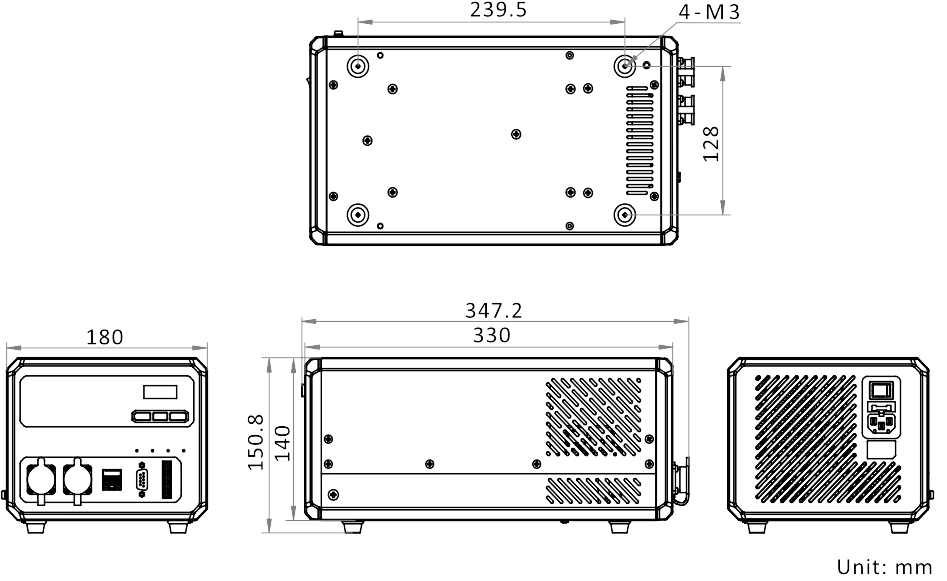

| Dimension | 347.2 mm × 180 mm × 150.8 mm (13.7" × 7.1" × 5.9") |
|---|---|
| Shell material | Plastic + SECC |
| Weight | 5000 g (11.0 lb.) |
| Shipping weight (estimated) | 7.10 kg |
