Light controllers

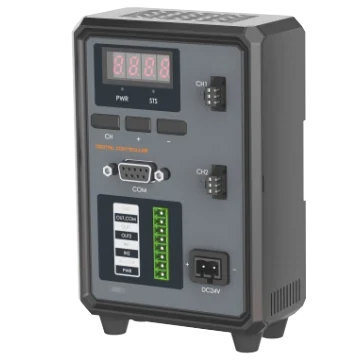

light controller for dot-type lighting, size 139.5 mm × 90 mm × 54.1 mm (LS-CTL-0294)
Model LS-CTL-0294
- Output5 VDC
- Input24 VDC
- ControlSerial
- TriggerExternal trigger and internal trigger
$179.00
Ships in 2-3 weeks
0.44 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
light controller for dot-type lighting. Adopts constant current to improve light source stability. Adopts buttons and display to have quick operations.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0294 |
|---|---|
| Dimming mode | Control panel (via pressing button), software (serial port) |
| Cooling mode | Natural cooling |
| Lighting mode | Continuous, strobe |
| Lighting response time | < 10 μs |
Interfaces and I/O
| Communication protocol | Serial |
|---|---|
| Light source output connector | SMR-03V-BC (Female) |
| Power supply interface | 24 VDC terminal block |
| Console interface | DB9F serial port |
| Digital I/O | Opto-isolated input × 2, opto-isolated output × 2 |
Light
| Brightness level | 0 to 255 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature:–20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 85% RH (no condensation) |
| Ingress protection | IP30 |
| Certification | CE, KC |
Electrical
| Trigger mode | External trigger and internal trigger |
|---|---|
| Output current for each channel | Max. 1 A |
| Input current | 0.5 A/24 VDC |
| Input voltage | 24 VDC |
| Output current | Max. 2 A |
| Output power | Max. 10 W |
| Output voltage | 5 VDC |
| Channel | 2-channel |
| Drive mode | Digital, constant current |
| Trigger in | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
Mechanical

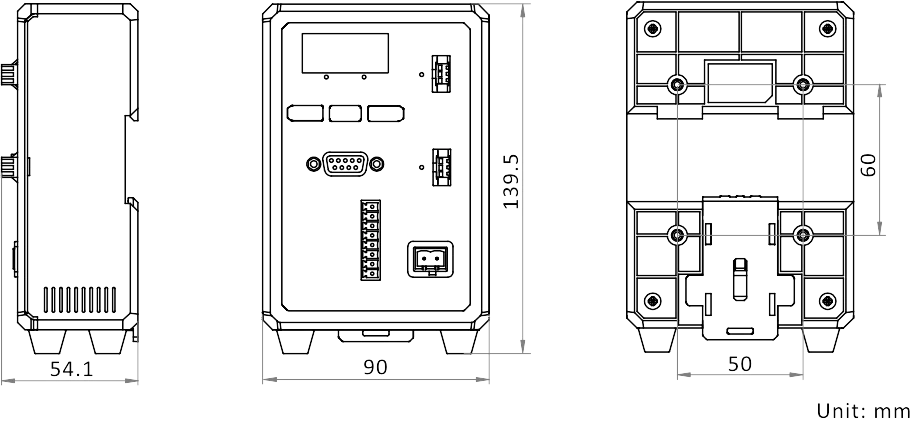

| Dimension | 139.5 mm × 90 mm × 54.1 mm (5.5" × 3.5" × 2.1") |
|---|---|
| Shell material | Plastic |
| Weight | 240 g (0.5 lb.) |
| Shipping weight (estimated) | 0.44 kg |
