Digital constant-voltage light controller, 150W, 1 channel @ 12M-2B connector (LS-CTL-0302)
Model LS-CTL-0302
- Output24 VDC
- Input170 ~ 240 VAC, 50/60 Hz
- ControlNot supported
- TriggerNot supported
$329.00
Ships in 2-3 weeks
3.12 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Digital constant-voltage light controller, 150W, 1 channel @ 12M-2B connector. Up to 6.25 A output current per channel 3 brightness control methods: panel knob, panel buttons and serial communication
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0302 |
|---|---|
| Lighting mode | Constant voltage |
| PWM frequency | Not supported |
| Dimming mode | Panel knob, Serial communication |
| Lighting response time | Not supported |
| Cooling mode | Forced cooling (built-in fan) |
Interfaces and I/O
| Communication protocol | Not supported |
|---|---|
| Applicable product | Large panel light, Standard line light |
| Power supply interface | AC socket |
| Console interface | Serial port |
| Digital I/O | Not supported |
| Lighting output connector | 12M-2B; SMR-03V-BC |
Light
| Brightness level | 0 ~ 255 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Ingress protection | IP30 (when properly installed) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | CE, RoHS |
Electrical
| Drive mode | Constant voltage |
|---|---|
| Strobe overdrive | Not supported |
| Channel | 1 |
| Trigger mode | Not supported |
| Input voltage | 170 ~ 240 VAC, 50/60 Hz |
| Input current | 1 A |
| Output current | 6.25 A max |
| Output power | 150 W max |
| Output current for each channel | 6.25 A max |
| Trigger in | Not supported |
| Trigger out | Not supported |
| Output voltage | 24 VDC |
Mechanical

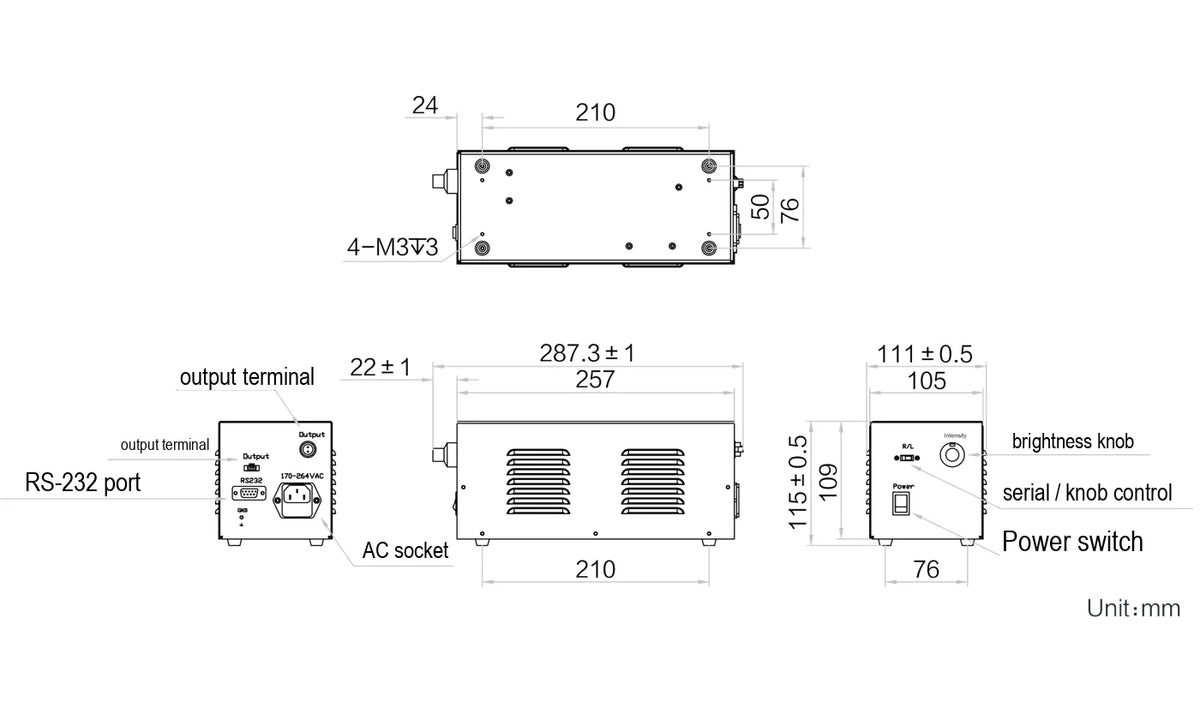

| Dimension | 309.3 mm × 115 mm × 111 mm |
|---|---|
| Shell material | Galvanized steel sheet |
| Weight | Approx. 2160 g |
| Shipping weight (estimated) | 3.12 kg |
