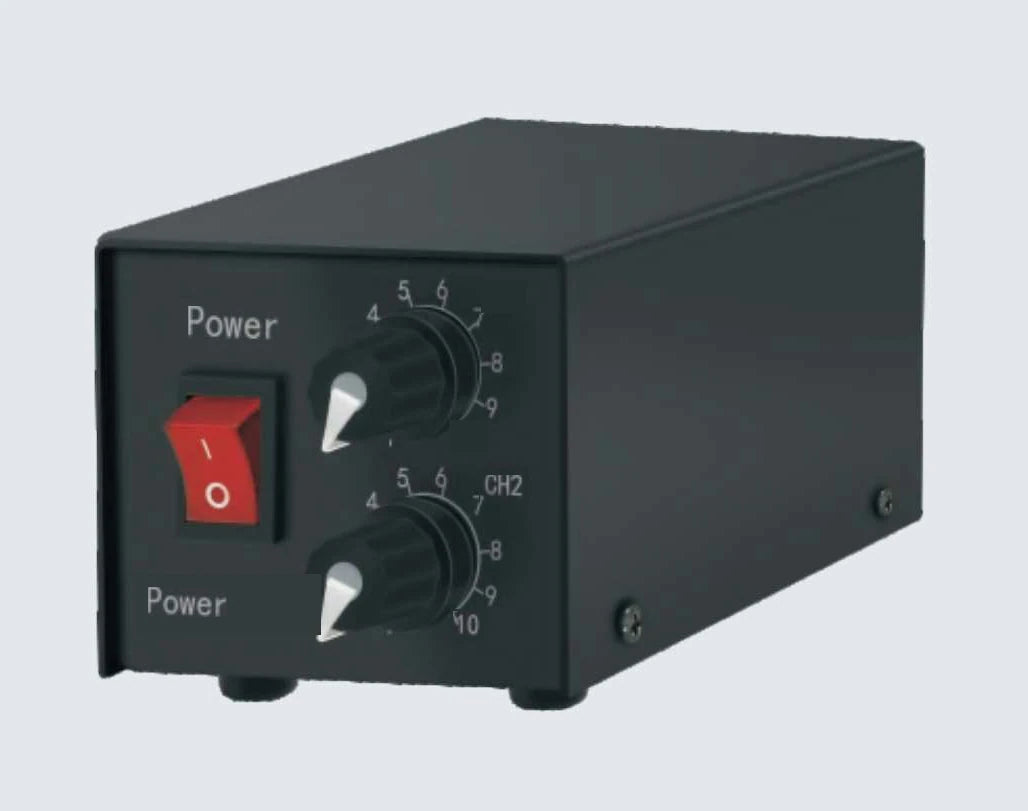

MAPC analog power supply controller, 2 ch (LS-CTL-0509)

Model LS-CTL-0509

Channels2
Output0-24 V
InputAC100-240V 50/60Hz
Total output0.7A
ControlStepless knob

$169.00

Ships in 2-3 weeks

0.4 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-CTL-S99 series analog controllers provide brightness-control power for 24 V LED lights. Brightness is set precisely with stepless knobs on the front panel; small, flexible and able to stay lit for long periods.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0509
Control	Stepless knob

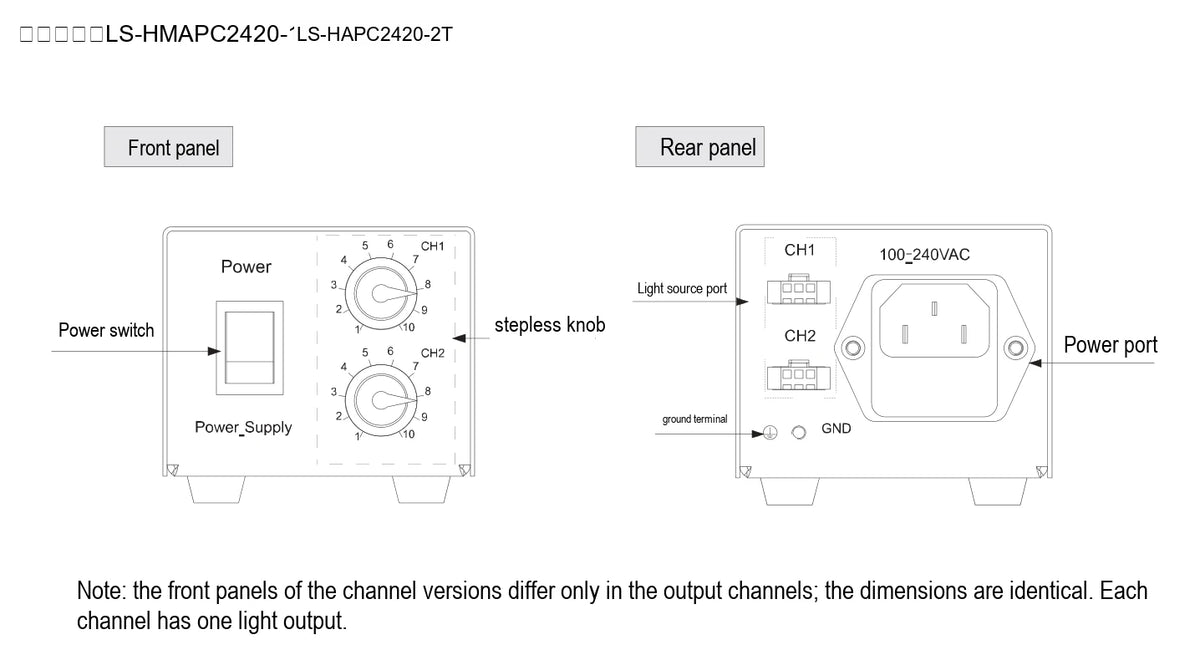

Front panel	Power switch, stepless knobs
Rear panel	Light output ports, power input, ground terminal
Panel note	Front panels for different channel counts differ only in the output channels; outer dimensions are otherwise the same. One channel drives one light output.
Control (perform)	Knob

Electrical

Input voltage	AC100-240V 50/60Hz
Output voltage	0-24 V
Trigger input	No
Channel / output	C2 O2 (2 channels, 2 outputs)
Single channel current	0.7A
Total output current	0.7A
Channels	2

Mechanical

Shipping weight	0.40 kg
