18-72 mm, 1/1.2", 12 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0158)

Model LS-CTV-0158

Focal length18-72mm
MountCS-mount
Sensor1/1.2"
Resolution12 Megapixel

$109.00

Ships in 2-3 weeks

0.77 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

18-72 mm, 1/1.2", 12 MP, CS-mount Varifocal CCTV Lens. An 18-72 mm F1.3 P-iris varifocal lens for 1/1.2" 12-megapixel cameras (covers 2/3", 1/1.8", 1/2") with IR correction, for buildings, ITS, exits, metro, highways and toll gates. At a glance: focal length 18-72mm; format 1/1.2" (dia. 12.8mm); resolution 12 Megapixel; aperture F1.3 P-Iris ( DC/Manual customization ); mount CS.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0158
IR corrected	IR
Format	1/1.2" (dia. 12.8mm)
Angle of view (1/1.2", DxHxV)	37.5 x 32.1 x 17.9 deg
Angle of view (2/3", DxHxV)	31.8 x 25.2 x 18.9 deg
Angle of view (1/1.8", DxHxV)	25.5 x 22 x 12.4 deg
CRA	4.1°(1/1.2"); 4.5°(1/1.8")
Notes	-30°~+70°; 400~900nm
IR correction	IR

Optics

Focal length	18-72mm
Aperture	F1.3 P-Iris ( DC/Manual customization )
Distortion	-7.5% ~ 0.8%(1/1.2"); -3.4%~0.4%(1/1.8")
M.O.D.	3m
Relative illumination	42%

Sensor and imaging

Resolution	12 Megapixel

Mechanical

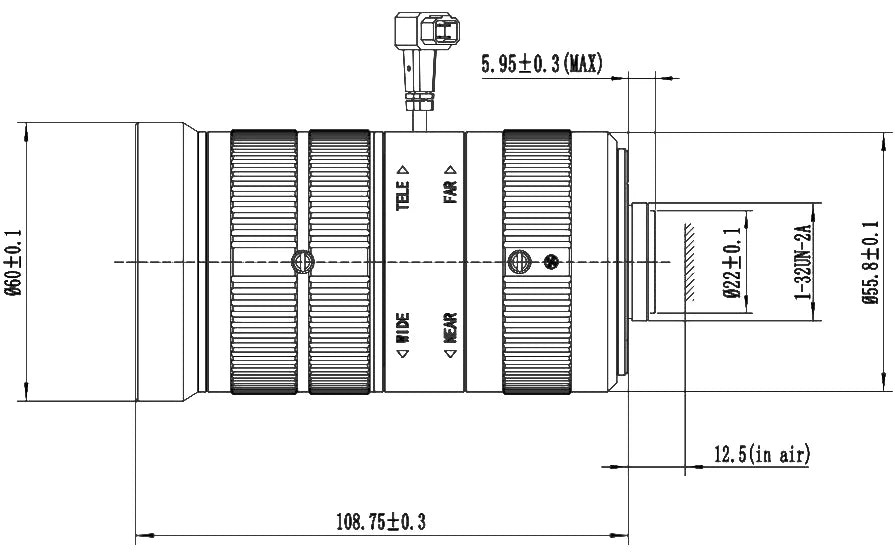

Size	dia. 60 x 108.75mm
Mount	CS
Weight	482g
Shipping weight (estimated)	0.77 kg
