CCTV lenses

3.8-18 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0152)

Model LS-CTV-0152

Focal length3.8-18 mm
MountC-mount
Sensor1/1.7"
ApertureF1.4 Manual Iris
Resolution12 Megapixel

$109.00

Ships in 2-3 weeks

0.44 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

3.8-18 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens. 12 megapixel 3.8-18 mm F1.4 manual-iris varifocal lens for 1/1.7" cameras, IR-corrected for 24 h day and night vision, with a metal body and glass elements. Shown capturing a licence plate at 7 m at 18 mm. At a glance: focal length 3.8-18 mm; format 1/1.7" (dia. 9.5 mm); resolution 12 Megapixel; aperture F1.4 Manual Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0152
IR corrected	IR
Format	1/1.7" (dia. 9.5 mm)
Angle of view (1/1.7", DxHxV)	W: 132 x 109 x 57 T: 35 x 31 x 17
CRA	13.2°~9.7°
Coating	430~650 nm / 850~950 nm

Optics

Focal length	3.8-18 mm
Aperture	F1.4 Manual Iris
Distortion	-75% (W) ~ -3.1%(T)
Relative illumination	40%(W) ~ 77% (T)
M.O.D.	0.5 m~1.5 m
Mechanical back focal length	7.86 mm

Sensor and imaging

Resolution	12 Megapixel

Mechanical

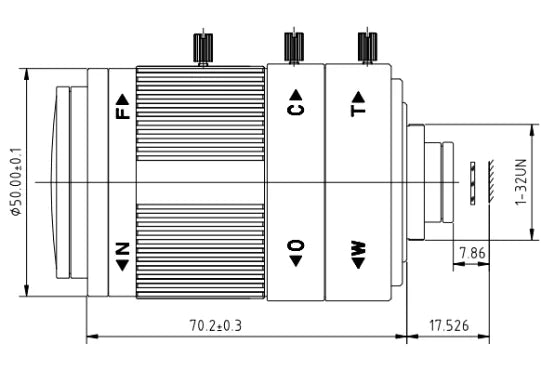

Size	dia. 50 x 70.2 mm
Mount	C
Weight	242 g
Shipping weight (estimated)	0.44 kg
