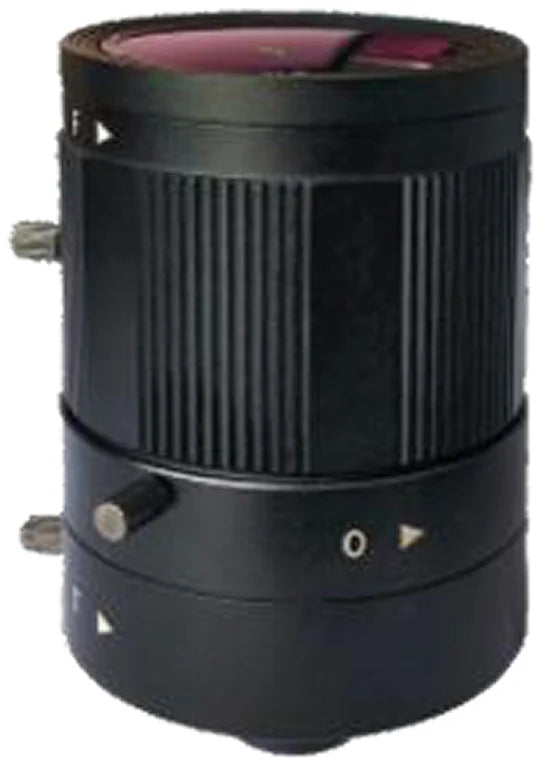

3.8-16 mm, 1/1.8", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0150)
  • 3.8-16 mm, 1/1.8", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0150)

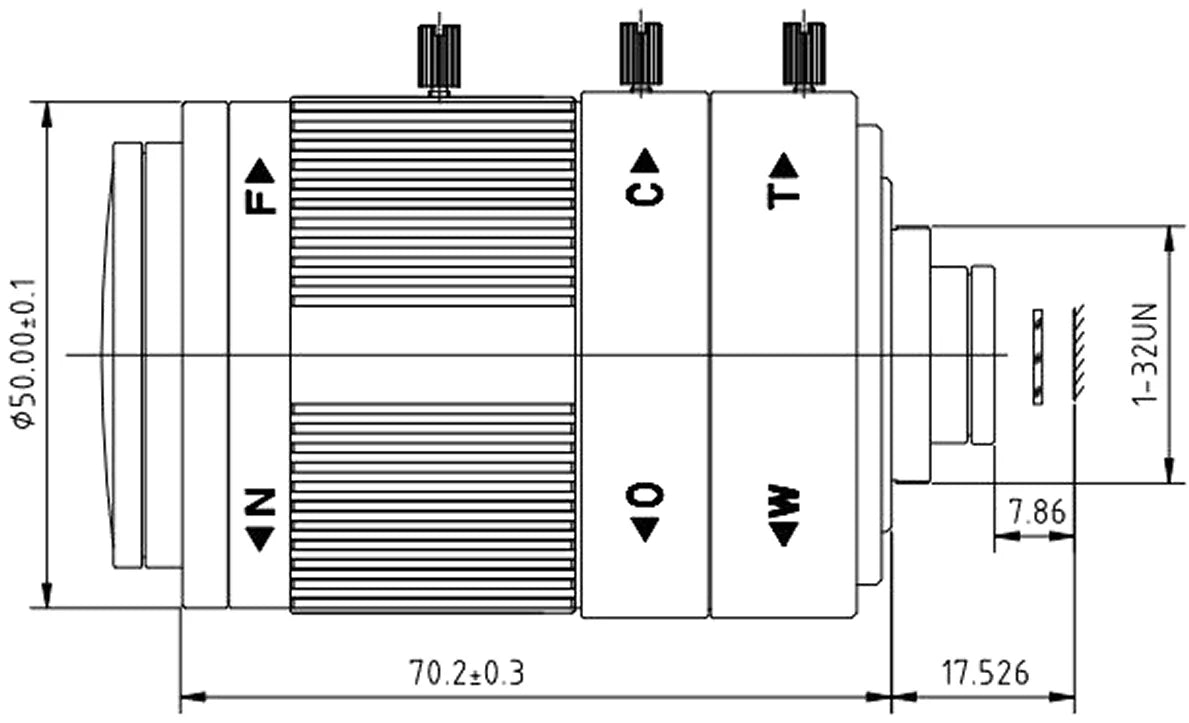

  • LS-CTV-0150 dimensions (mm)

CCTV lenses

3.8-16 mm, 1/1.8", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0150)

Model LS-CTV-0150

  • Focal length3.8-16 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF1.4 Manual Iris
  • Resolution8 Megapixel
$109.00

Ships in 2-3 weeks

0.44 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.8-16 mm, 1/1.8", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0150)LS-CTV-0150

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.8-16 mm, 1/1.8", 8 MP, C-mount Varifocal CCTV Lens. 3.8-16 mm 1/1.8" 8 MP C-mount IR varifocal lens, manual iris. At a glance: focal length 3.8-16 mm; format 1/1.8" (dia. 9.5 mm); resolution 8 Megapixel; aperture F1.4 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0150
IR correctionIR
Format1/1.8" (dia. 9.5 mm)
Angle of view (1/1.8", DxHxV)150 x 117 x 55 deg
CRA13.2°~9.7°
Notes-20°~+70°

Optics

Focal length3.8-16 mm
ApertureF1.4 Manual Iris
Distortion-75% (W) ~ -3.1% (T)
Relative illumination40% (W) ~ 77% (T)
M.O.D.0.5 m~1.5 m

Sensor and imaging

Resolution8 Megapixel

Mechanical

Sizedia. 50 x 70.2 mm
MountC
Weight242 g
Shipping weight (estimated)0.44 kg

Other models in the Varifocal CCTV lenses (LS-CTV-S05) series

See all 73 models
ModelSize / key dataPriceAvailabilityLink
LS-CTV-0148 2.8-12 mm, 1/2.7", 5 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0153 3.8-18 mm, 1/1.8", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0154 6-15.5 mm, 2/3", 3 MP, C-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0157 5-50 mm, 1/2.7", 4 MP, CS-mount $79.00 Ships in 2-3 weeks View
LS-CTV-0090 15-40 mm, 1.1", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0087 10-40 mm, 1", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0088 10-40 mm, 1", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0089 10-40 mm, 1", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0107 8-25 mm, 1/1.7", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0111 10-50 mm, 1/1.7", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0112 11-50 mm, 1/1.7", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0114 15-75 mm, 1/1.7", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0113 15-75 mm, 1/1.7", 8 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0117 2.8-12 mm, 1/1.8", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0124 3.6-10 mm, 1/1.8", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0125 3.6-18 mm, 1/1.7", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0126 3.6-18 mm, 1/1.7", 12 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0127 3.8-16 mm, 1/1.8", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0129 3.8-18 mm, 1/1.7", 12 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0144 10-50 mm, 1/1.7", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0149 3.8-16 mm, 1/1.8", 8 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0151 3.8-18 mm, 1/1.7", 12 MP, CS-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0152 3.8-18 mm, 1/1.7", 12 MP, C-mount $109.00 Ships in 2-3 weeks View
LS-CTV-0158 18-72 mm, 1/1.2", 12 MP, CS-mount $109.00 Ships in 2-3 weeks View
