15-75 mm, 1/1.7", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0113)
  • 15-75 mm, 1/1.7", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0113)

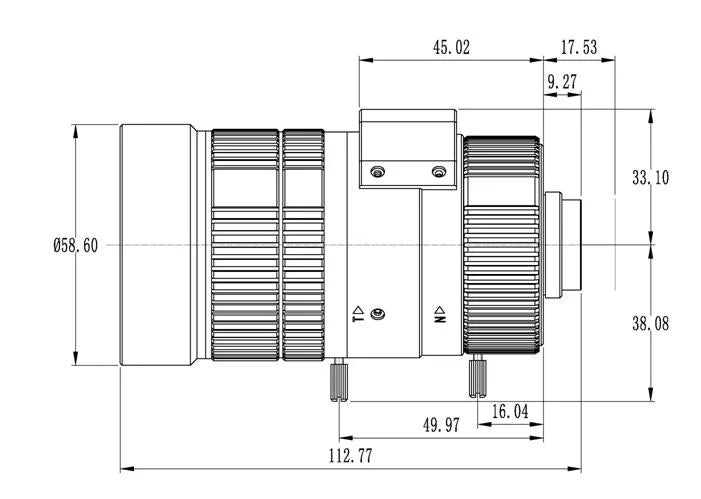

  • LS-CTV-0113 dimensions (mm)

CCTV lenses

15-75 mm, 1/1.7", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0113)

Model LS-CTV-0113

  • Focal length15-75 mm
  • MountC-mount
  • Sensor1/1.7"
  • ApertureF1.5 DC Iris
  • Resolution8.0 MP
$109.00

Ships in 2-3 weeks

0.74 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

15-75 mm, 1/1.7", 8 MP, C-mount Varifocal CCTV Lens (LS-CTV-0113)LS-CTV-0113

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

15-75 mm, 1/1.7", 8 MP, C-mount Varifocal CCTV Lens. 15-75 mm (5x), 1/1.7" 8 MP varifocal lens with F1.5 DC auto iris and IR correction (400-900 nm). Covers 1/1.7", 1/1.8" and 1/2" cameras for long-distance surveillance, ITS, parking and entrances. At a glance: focal length 15-75 mm; format 1/1.7"; resolution 8.0 MP; aperture F1.5 DC Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0113
IR correctionIR (400 ~ 900nm)
Format1/1.7"
B.F.L.8.58 mm ~ 11.69 mm
Angle of view (1/1.7")W: 33 x 26 x 19.2, T: 7.8 x 6.3 x 4.7 deg
Angle of view (1/2")W: 28 x 22.2 x 16.5, T: 6.7 x 5.4 x 4 deg

Optics

Focal length15-75 mm
ApertureF1.5 DC Iris
M.O.D.1.5 m
Distortion-6.7% ~ -0.1%

Sensor and imaging

Resolution8.0 MP

Mechanical

Sizedia. 58 x 113 mm
MountC
Weight455 g
Shipping weight (estimated)0.74 kg
