15-75 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0114)
  • 15-75 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0114)

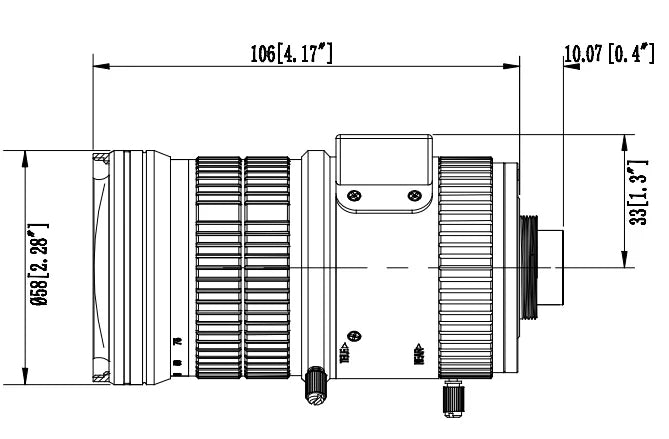

  • LS-CTV-0114 dimensions (mm)

CCTV lenses

15-75 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0114)

Model LS-CTV-0114

  • Focal length15-75mm
  • MountC-mount
  • Sensor1/1.7"
  • ApertureF1.5 DC Iris
  • Resolution12 Megapixel
$109.00

Ships in 2-3 weeks

0.75 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

15-75 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0114)LS-CTV-0114

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

15-75 mm, 1/1.7", 12 MP, C-mount Varifocal CCTV Lens. 1/1.7" 15-75 mm 12 megapixel DC (auto) iris varifocal CCTV lens, F1.5, IR corrected, C mount, for ITS and license-plate recognition. At a glance: focal length 15-75mm; format 1/1.7"; resolution 12 Megapixel; aperture F1.5 DC Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0114
Format1/1.7"
Angle of view (1/1.7" (16:9), DxHxV)30.6 x 26.8 x 13.8 deg
Angle of view (1/1.7" (4:3), DxHxV)33 x 26 x 19.2 deg
Angle of view (1/2", DxHxV)28 x 22.2 x 16.5 deg
Notes-30°~+70°
IR correctionYes (day & night)
Angle of view (1/1.7" (16:9))30.6 x 26.8 x 13.8 deg
Angle of view (1/1.7" (4:3))33 x 26 x 19.2 deg
Angle of view (1/2")28 x 22.2 x 16.5 deg

Optics

Focal length15-75mm
ApertureF1.5 DC Iris
M.O.D.1.5m

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 58 x 116
MountC
Weight465g
Shipping weight (estimated)0.75 kg
