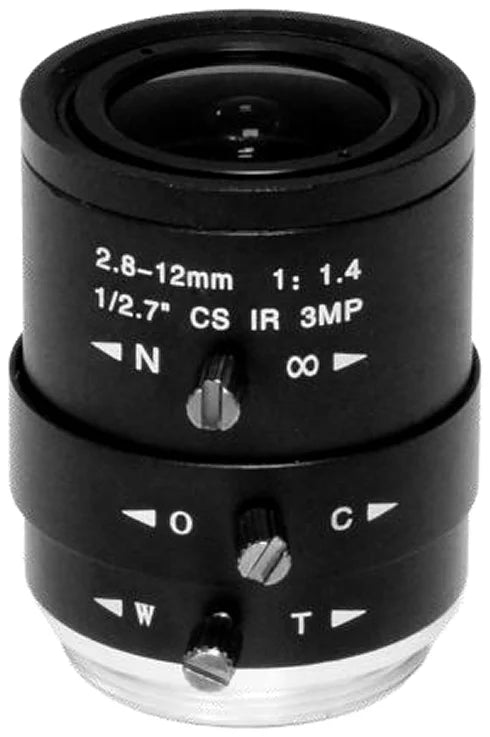

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, F1.4 Manual Iris (LS-CTV-0147)
  • 2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, F1.4 Manual Iris (LS-CTV-0147)

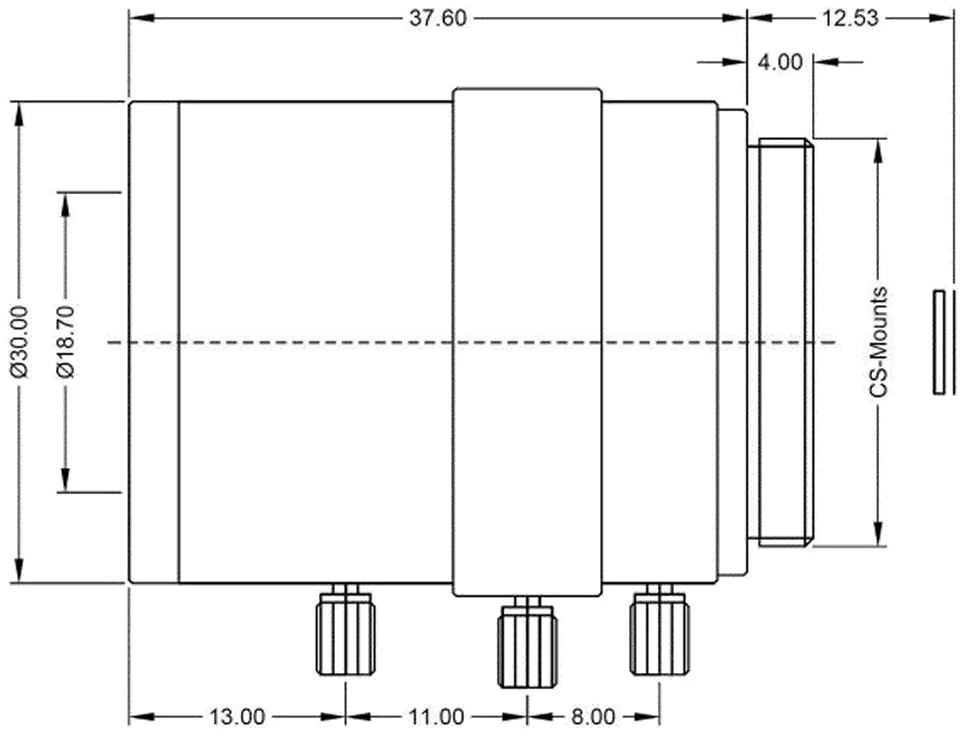

  • LS-CTV-0147 dimensions (mm)

CCTV lenses

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, F1.4 Manual Iris (LS-CTV-0147)

Model LS-CTV-0147

  • Focal length2.8-12 mm
  • MountCS-mount
  • Sensor1/2.7"
  • ApertureF1.4 Manual Iris
  • Resolution3.0 Megapixel
$79.00

Ships in 2-3 weeks

0.17 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, F1.4 Manual Iris (LS-CTV-0147)LS-CTV-0147

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 2.8-12 mm 1/2.7" 3 MP CS-mount IR varifocal lens, manual iris. At a glance: focal length 2.8-12 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 Manual Iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0147
IR correctionIR
Format1/2.7"
Angle of view (1/2.7", HxV)112 x 34 deg
Elements9G

Optics

Focal length2.8-12 mm
ApertureF1.4 Manual Iris
M.O.D.0.3 m

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 31.5 x 37.5 mm
MountCS
Weight53 g
Shipping weight (estimated)0.17 kg
