5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, 5~50 mm (LS-CTV-0138)
  • 5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, 5~50 mm (LS-CTV-0138)

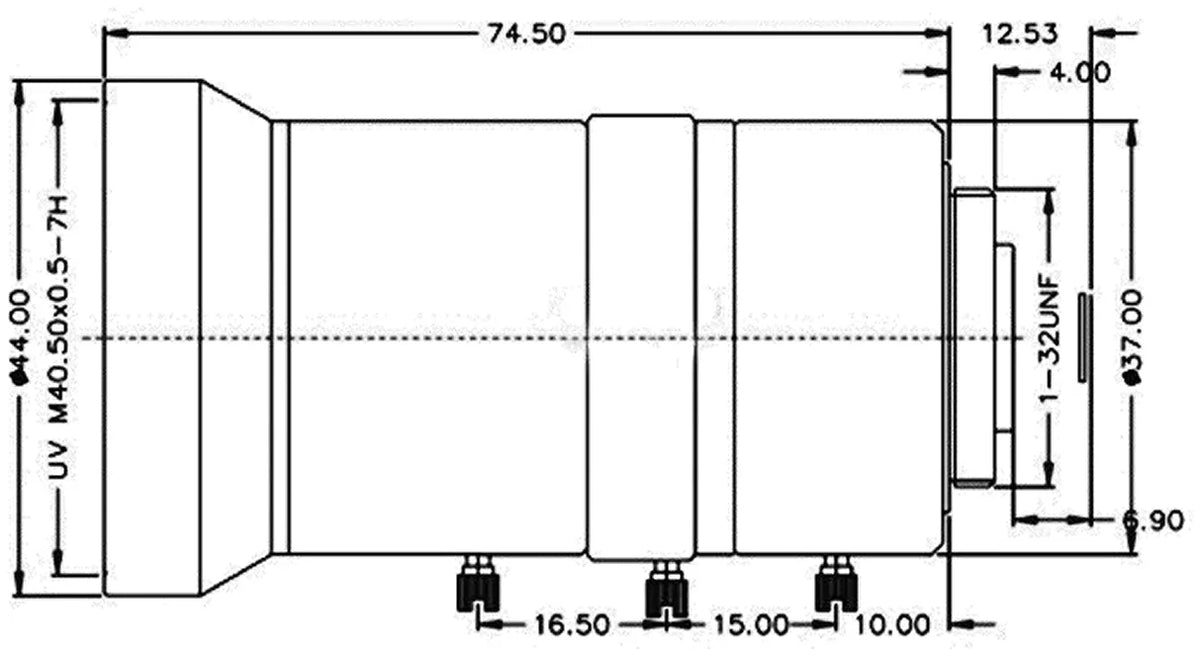

  • LS-CTV-0138 dimensions (mm)

CCTV lenses

5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, 5~50 mm (LS-CTV-0138)

Model LS-CTV-0138

  • Focal length5~50 mm
  • MountCS-mount
  • Sensor1/2.7"
  • ApertureF1.4 DC iris
  • Resolution3.0 Megapixel
$79.00

Ships in 2-3 weeks

0.39 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens, 5~50 mm (LS-CTV-0138)LS-CTV-0138

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5-50 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 1/2.7" 5-50 mm 3.0 megapixel varifocal CCTV lens with IR day/night correction (850 nm), F1.4, CS mount, metal body, for safe-city, ITS and entrance/highway cameras. At a glance: focal length 5~50 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 DC iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0138
Format1/2.7"
Angle of view (1/2.7", DxHxV)61 x 54 x 31 deg
Angle of view (1/3", DxHxV)56 x 48.3 x 27.3 deg
NotesIR Coating 400~850nm
IR correctionYes (day & night)
Angle of view (1/2.7")51.5° x 5.36°
B.F.L.12.53 mm
T.T.L.87.03 mm

Optics

Focal length5~50 mm
ApertureF1.4 DC iris
M.O.D.1.5m
Distortion<5.1%
Back focal length (optical)8.1mm
Aperture typeManual Iris

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 44 x 76.7mm
Optical total length85.4mm
MountCS
Weight206g
Shipping weight (estimated)0.39 kg
