3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.6 DC Iris (LS-CTV-0128)
  • 3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.6 DC Iris (LS-CTV-0128)

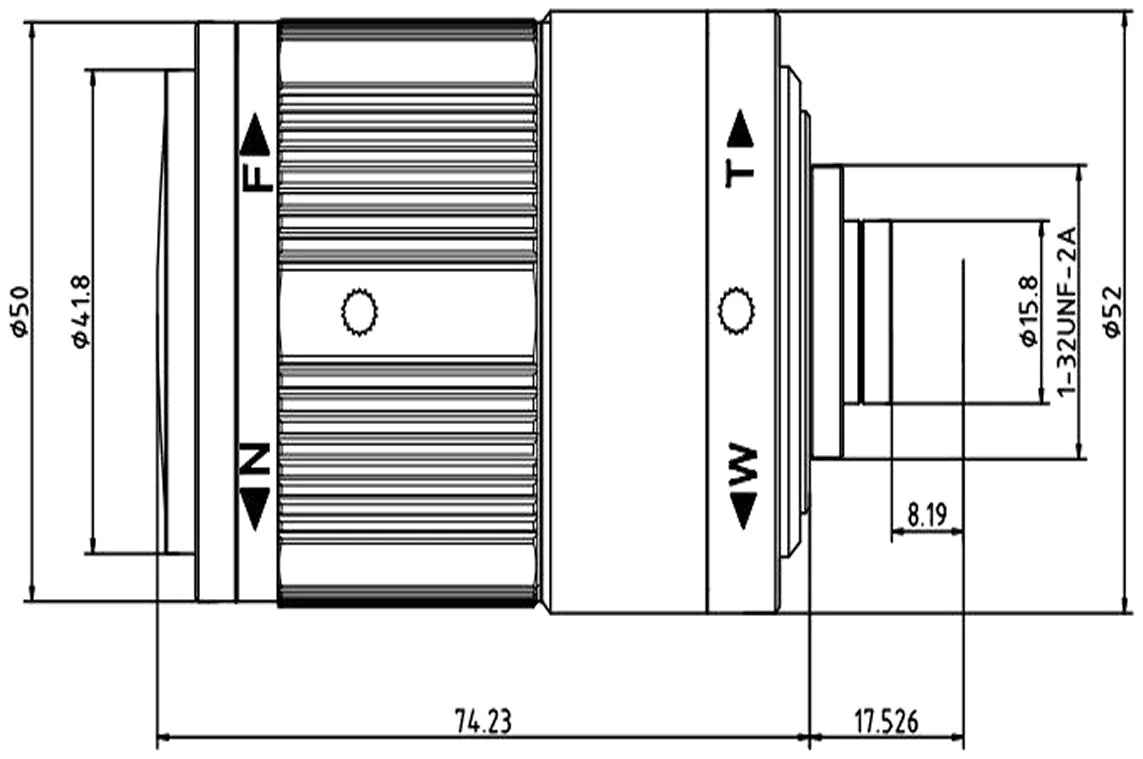

  • LS-CTV-0128 dimensions (mm)

CCTV lenses

3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.6 DC Iris (LS-CTV-0128)

Model LS-CTV-0128

  • Focal length3.8-18mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF1.6 DC Iris
  • Resolution3.0 Megapixel
$79.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, F1.6 DC Iris (LS-CTV-0128)LS-CTV-0128

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.8-18 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. A 3.8-18 mm F1.6 DC auto-iris varifocal lens for 1/1.8" 3-megapixel cameras with IR correction for day and night, in a metal body. At a glance: focal length 3.8-18mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 DC Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0128
IR correctedIR
Format1/1.8"
Angle of view (1/1.8", DxHxV)160 x 114 x 80 deg
Angle of view (1/2", DxHxV)134 x 100 x 70 deg
Notes-20°~+80°
IR correctionIR
B.F.L.8.8~20.9 mm
T.T.L.91.7 mm

Optics

Focal length3.8-18mm
ApertureF1.6 DC Iris
M.O.D.0.2m
Back focal length8.8~20.9mm
Total track length (TTL)91.7mm
Distortion-81.4~-2.5%

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 50 x 74.23
MountC
Weight150g
Shipping weight (estimated)0.31 kg
