CCTV lenses

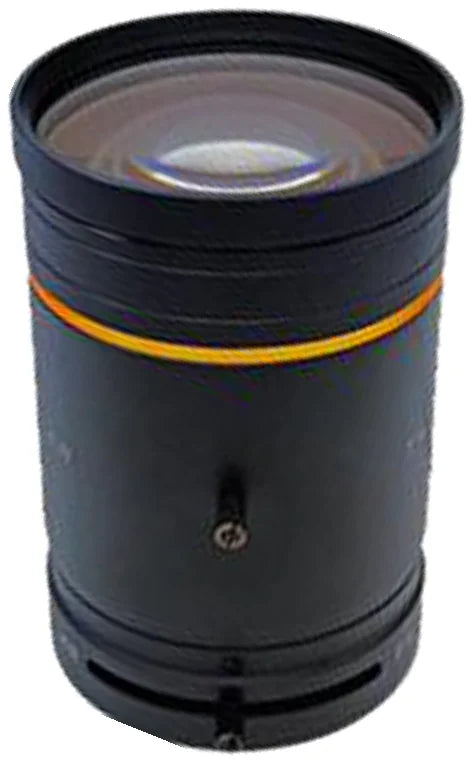

7.5-85 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-CTV-0131)

Model LS-CTV-0131

Focal length7.5-85 mm
MountC-mount
Sensor1/1.8"
ApertureF1.6 DC Iris
Resolution3 Megapixel

$79.00

Ships in 2-3 weeks

0.39 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

7.5-85 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. 7.5-85 mm, 3 megapixel IR-corrected varifocal lens for 1/1.8" cameras with F1.6 DC iris, for long-distance surveillance, parking and LPR. At a glance: focal length 7.5-85 mm; format 1/1.8"; resolution 3 Megapixel; aperture F1.6 DC Iris; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0131
IR corrected	IR
Format	1/1.8"
Angle of view (1/1.8" (16:9), DxHxV)	W 67 x 57 x 31 deg / T 6.3 x 5.5 x 3.2 deg
Angle of view (1/1.8"(4:3), DxHxV)	W 67 x 52 x 39 deg / T 6.3 x 5 x 3.8 deg
Notes	-20~+80°
IR correction	IR
Angle of view (1/1.8" (16:9))	W: 67 x 57 x 31 \| T: 6.3 x 5.5 x 3.2 deg
Angle of view (1/1.8" (4:3))	W: 67 x 52 x 39 \| T: 6.3 x 5 x 3.8 deg
T.T.L.	126.08 mm

Optics

Focal length	7.5-85 mm
Aperture	F1.6 DC Iris
Distortion	-16.92% ~ -2.36%
Mechanical back focus	8.23-9.36 mm
Mechanical back focal length	8.23-9.36 mm

Sensor and imaging

Resolution	3 Megapixel

Mechanical

Size	dia. 70 x 110 mm
Total track length	126.08 mm
Mount	C
Weight	210 g
Shipping weight (estimated)	0.39 kg
