8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, 8-50mm (LS-CTV-0141)
  • 8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, 8-50mm (LS-CTV-0141)

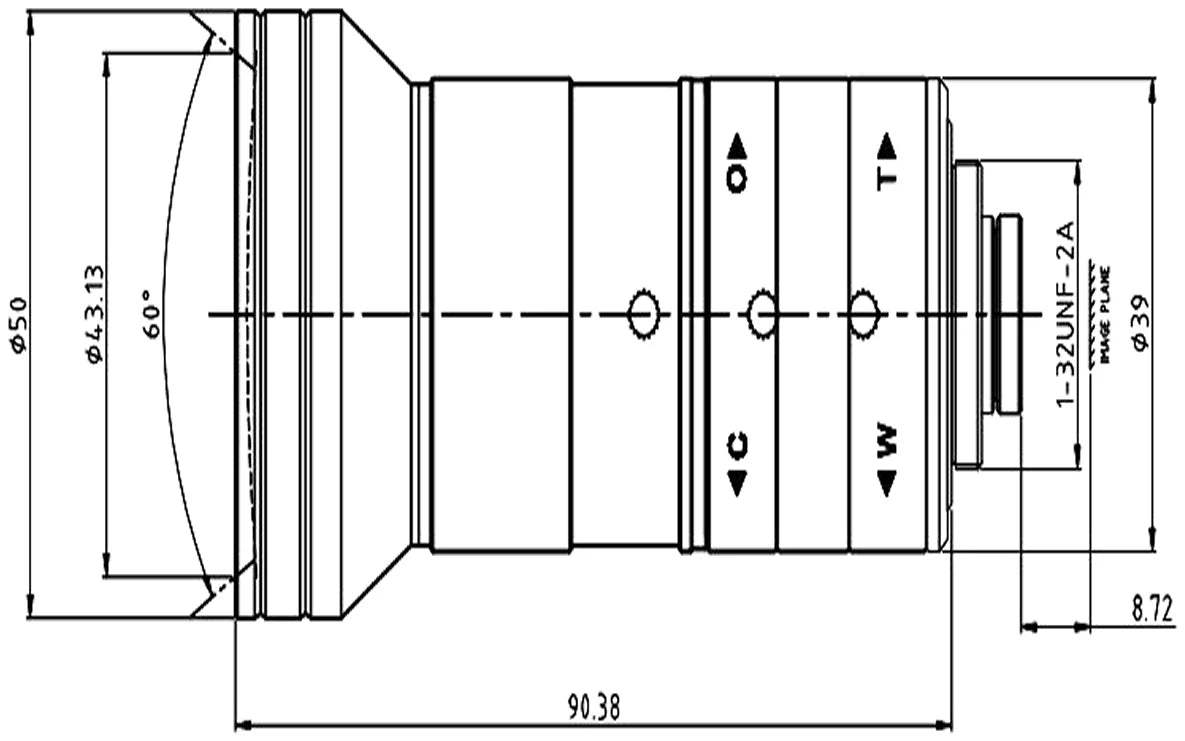

  • LS-CTV-0141 dimensions (mm)

CCTV lenses

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, 8-50mm (LS-CTV-0141)

Model LS-CTV-0141

  • Focal length8-50mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF1.6 Manual Iris
  • Resolution3.0 Megapixel
$79.00

Ships in 2-3 weeks

0.74 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens, 8-50mm (LS-CTV-0141)LS-CTV-0141

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. An 8-50 mm F1.6 manual-iris varifocal lens for 1/1.8" 3-megapixel cameras with IR correction, for metro, smart city, ITS, toll gate and highway use. At a glance: focal length 8-50mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 Manual Iris; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0141
IR correctedIR
Format1/1.8"
Angle of view (1/1.8" 16:9)60 x 50 x 27 deg
Angle of view (1/1.8" 4:3)60 x 45 x 33 deg
IR correctionIR
Angle of view (1/1.8" (16:9))60 x 50 x 27 deg
Angle of view (1/1.8" (4:3))60 x 45 x 33 deg

Optics

Focal length8-50mm
ApertureF1.6 Manual Iris
M.O.D.0.3m
Distortion-19.2%~-0.9%
Mechanical back focal length8.72~11.46mm

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 50x90.4mm
MountC
Weight460g
Shipping weight (estimated)0.74 kg
