CCTV lenses

5-50 mm, 1/2.7", 4 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0157)

Model LS-CTV-0157

Focal length5-50mm
MountCS-mount
Sensor1/2.7"
ApertureF1.4 P/DC Iris (Option)
Resolution4 Megapixel

$79.00

Ships in 2-3 weeks

0.3 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

5-50 mm, 1/2.7", 4 MP, CS-mount Varifocal CCTV Lens. 4.0 megapixel 5-50 mm F1.4 varifocal CCTV lens for 1/2.7" cameras with P-iris (DC iris optional) for more precise iris control, IR-corrected for day and night, small size for many camera housings. At a glance: focal length 5-50mm; format 1/2.7"; resolution 4 Megapixel; aperture F1.4 P/DC Iris (Option); mount CS.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0157
IR correction	IR
Format	1/2.7"
Angle of view (1/2.7" 16:9, DxHxV)	W:56.4 x 47.5 x 25.4 \| T: 8 x 7.1 x 3.9
Notes	-20~+70°; 430nm~950nm Coating
Angle of view (1/2.7" (16:9))	W:56.4 x 47.5 x 25.4 \| T: 8 x 7.1 x 3.9 deg
T.T.L.	85.42 mm

Optics

Focal length	5-50mm
Aperture	F1.4 P/DC Iris (Option)
Distortion	-16.7% ~ -1.24%
Back focal length (mechanical)	8.5mm
M.O.D.	300mm
Mechanical back focal length	8.5 mm

Sensor and imaging

Resolution	4 Megapixel

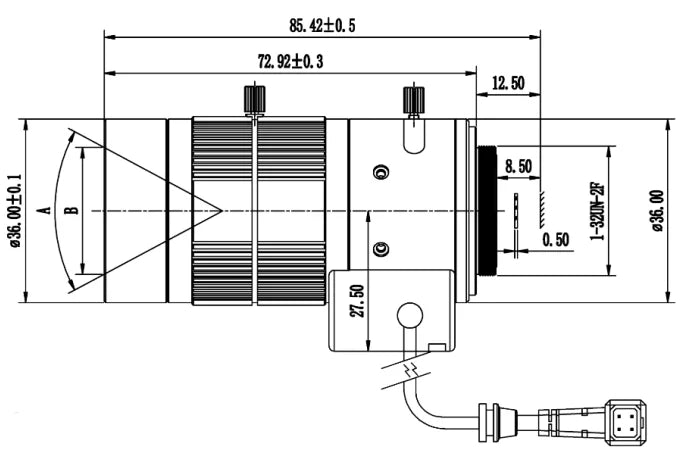

Mechanical

Size	dia. 36 x 72.92mm
Optical total length	85.42mm
Mount	CS
Weight	142g
Shipping weight (estimated)	0.30 kg
