CCTV lenses

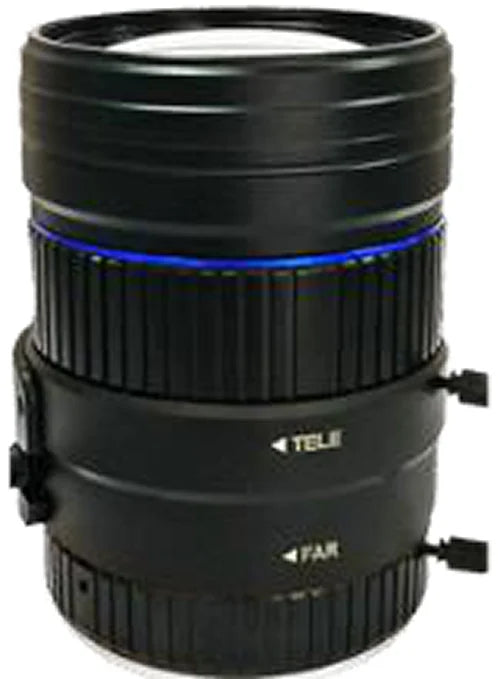

10-40 mm, 1", 12 MP, C-mount Varifocal CCTV Lens, 12 Megapixel (LS-CTV-0087)

Model LS-CTV-0087

Focal length10-40 mm
MountC-mount
Sensor1"
ApertureF1.6 DC iris / P-iris (optional)
Resolution12 Megapixel

$109.00

Ships in 2-3 weeks

0.88 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10-40 mm, 1", 12 MP, C-mount Varifocal CCTV Lens. 10-40 mm F1.6 varifocal 12 megapixel 1" lens with low distortion for ITS, day/night IR correction and DC iris, P-iris or manual iris options; it can replace a 12-36 mm lens and covers 1", 1/1.7", 1/1.8" and 1/2" cameras. At a glance: focal length 10-40 mm; format 1"; resolution 12 Megapixel; aperture F1.6 DC iris / P-iris (optional); mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0087
IR correction	IR corrected (day/night)
Format	1"
Angle of view (1")	68.5 x 54.6 x 41.5 deg
Angle of view (2/3")	48.2 x 38 x 23.7 deg
Angle of view (1/2")	35.7 x 27.9 x 24.9 deg

Optics

Focal length	10-40 mm
Aperture	F1.6 DC iris / P-iris (optional)
M.O.D.	2.5 m
Distortion	-8% ~ -4.8%
Filter thread	M60 x 0.75
Iris options	DC iris, P-iris or manual iris
Iris	DC

Sensor and imaging

Resolution	12 Megapixel

Mechanical

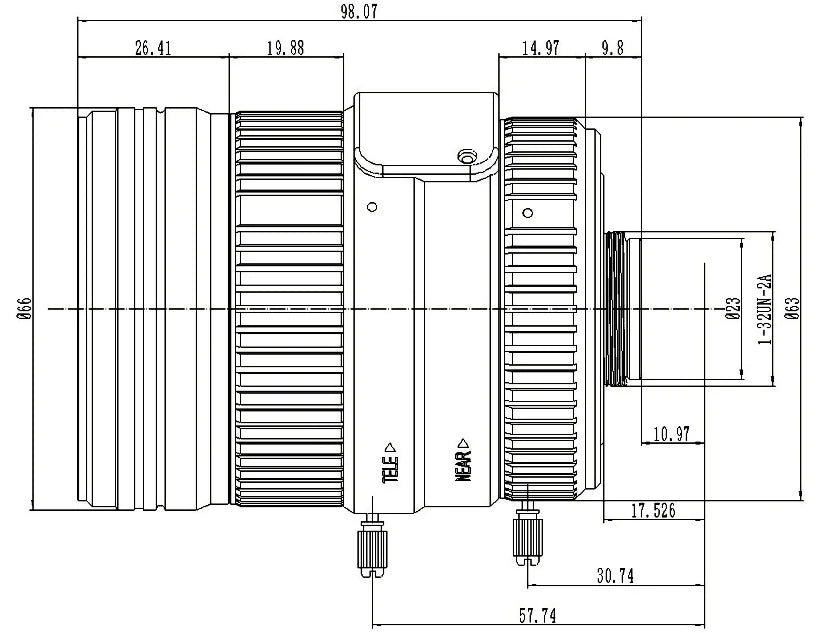

Size	dia. 66 x 98.07 mm
Mount	C
Weight	560 g
Shipping weight (estimated)	0.88 kg
