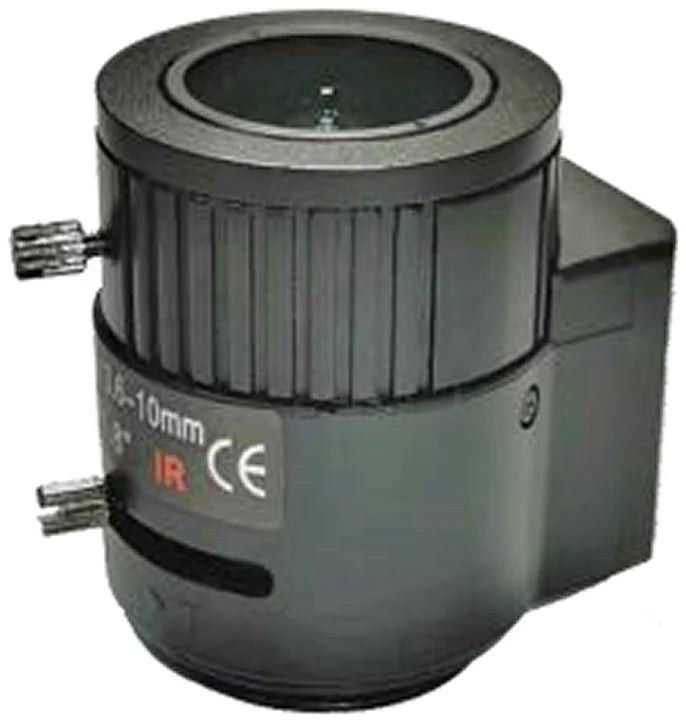

3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0124)
  • 3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0124)
  • LS-CTV-0124 dimensions (mm)

CCTV lenses

3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0124)

Model LS-CTV-0124

  • Focal length3.6-10 mm
  • MountCS-mount
  • Sensor1/1.8"
  • ApertureF1.6 DC Iris
  • Resolution8 Megapixel
$109.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0124)LS-CTV-0124

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.6-10 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens. Compact 3.6-10 mm, 8 megapixel IR-corrected varifocal lens for 1/1.8" cameras with F1.6 DC iris and CS mount. At a glance: focal length 3.6-10 mm; format 1/1.8"; resolution 8 Megapixel; aperture F1.6 DC Iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0124
IR correctedIR
Format1/1.8"
Angle of view (1/1.8" (16:9), DxHxV)W 145 x 114 x 58 deg / T 53.4 x 46.3 x 26 deg
Angle of view (1/3" (4:3), DxHxV)W 83.2 x 65 x 48 deg / T 36.2 x 28.9 x 21.7 deg
Notes-20°~+70° ; 430~850 nm Coating
IR correctionIR

Optics

Focal length3.6-10 mm
ApertureF1.6 DC Iris
Distortion-67.2% (W) ~ -8.24%(T)
M.O.D.0.5 m(W) ~ 1.5 m (T)
Mechanical back focus7.08 mm
Mechanical back focal length7.08 mm

Sensor and imaging

Resolution8 Megapixel

Mechanical

Sizedia. 32.5 x 41.92 mm
MountCS
Weight75 g
Shipping weight (estimated)0.20 kg
