CCTV lenses

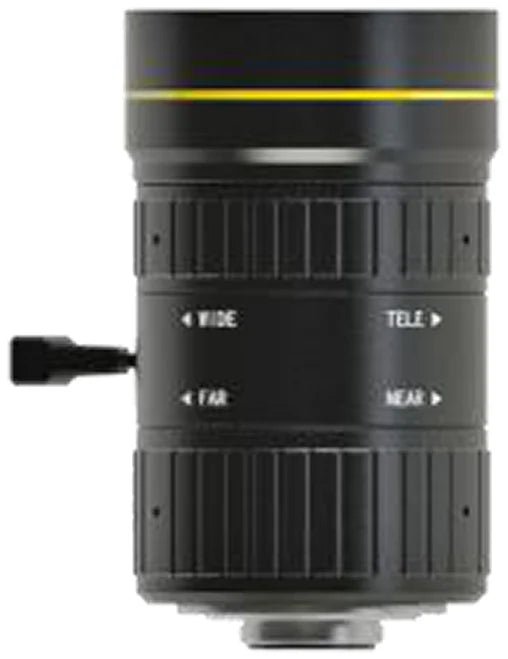

15-40 mm, 1.1", 12 MP, C-mount Varifocal CCTV Lens (LS-CTV-0090)

Model LS-CTV-0090

Focal length15-40 mm
MountC-mount
Sensor1.1"
ApertureF1.5 P-Iris
Resolution12 Megapixel

$109.00

Ships in 2-3 weeks

0.77 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

15-40 mm, 1.1", 12 MP, C-mount Varifocal CCTV Lens. 12 megapixel 15-40 mm varifocal lens for 1.1" cameras (covers 1", 1/1.7", 1/1.8", 1/2"), with a large F1.5 aperture, P-iris and low distortion for CCTV and ITS. IR-corrected day and night; can replace a 12-36 mm lens. At a glance: focal length 15-40 mm; format 1.1" (dia. 17.6 mm); resolution 12 Megapixel; aperture F1.5 P-Iris; mount C (17.526 mm).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTV-0090
IR corrected	IR
Format	1.1" (dia. 17.6 mm)
Angle of view (1.1", DxHxV)	W 60.3 x 50.1 x 34.4 / 25.3 x 21.2 x 14.7 T
Angle of view (1", DxHxV)	W 55.7 x 49 x 25.9 / 23.5 x 20.7 x 11.1 T
Angle of view (1/1.2", DxHxV)	W 44.4 x 38.7 x 21.7 / 18.8 x 16.5 x 9.3 T
CRA	6.1°(1.1"); 6.3°(1/1.2")
B.F.L.	12.48 mm
Spectral range	400~900 nm
IR correction	IR
Notes	-30°~+70°; 400~900 nm

Optics

Focal length	15-40 mm
Aperture	F1.5 P-Iris
Distortion	-9% ~ 1.2%(1.1"); -5.4% ~ 0.3%(1/1.2")
M.O.D.	W 1.5 m ~ T 2.5 m
Relative illumination	W 44% ; T 43%

Sensor and imaging

Resolution	12 Megapixel

Environment and compliance

Operating temperature	-30°~+70°

Mechanical

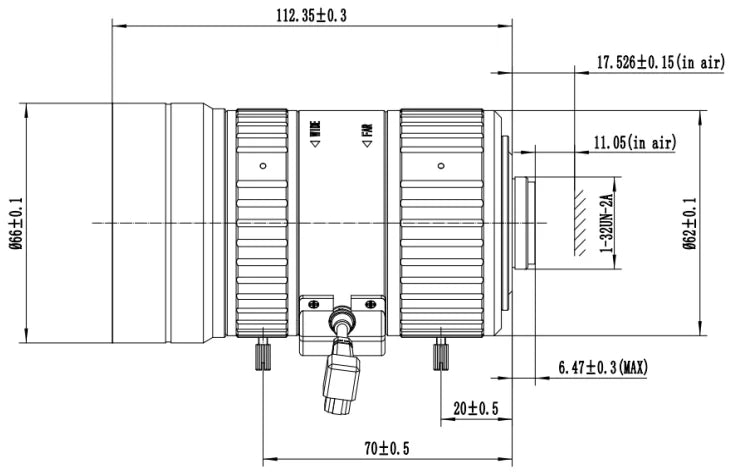

Size	dia. 66 x 112.35 mm
Mount	C (17.526 mm)
Weight	482 g
Shipping weight (estimated)	0.77 kg
