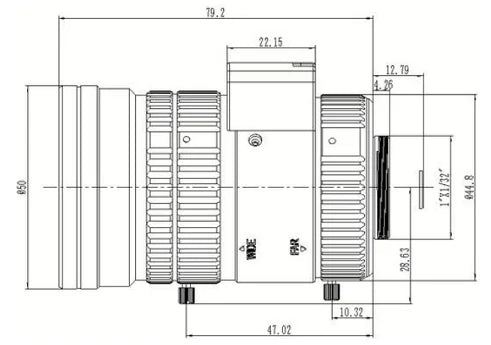

  • LS-CTV-0107 dimensions (mm)

CCTV lenses

8-25 mm, 1/1.7", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0107)

Model LS-CTV-0107

  • Focal length8-25mm
  • MountCS-mount
  • Sensor1/1.7"
  • ApertureF1.4 DC iris
  • Resolution8.0 Megapixel
$109.00

Ships in 2-3 weeks

0.47 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8-25 mm, 1/1.7", 8 MP, CS-mount Varifocal CCTV Lens (LS-CTV-0107)LS-CTV-0107

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8-25 mm, 1/1.7", 8 MP, CS-mount Varifocal CCTV Lens. 1/1.7" 8-25 mm 8.0 megapixel DC (auto) iris varifocal CCTV lens, F1.4, IR corrected 400-900 nm, for smart-city, ITS and face recognition cameras. At a glance: focal length 8-25mm; format 1/1.7"; resolution 8.0 Megapixel; aperture F1.4 DC iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0107
Format1/1.7"
Angle of view (1/1.7" (4:3), DxHxV)64 x 52 x 39.1 deg
Angle of view (1/1.8" (3:2), DxHxV)61.1 x 51 x 34.2 deg
Angle of view (1/2", DxHxV)55 x 44.3 x 33.4 deg
NotesIR Coating 400~900nm
IR correctionYes (day & night)

Optics

Focal length8-25mm
ApertureF1.4 DC iris
M.O.D.1.5m
Distortion-8.6% ~ -4.9%
Back focal length (optical)7.74~9.88mm
Mechanical back focal length7.24~9.38mm

Sensor and imaging

Resolution8.0 Megapixel

Mechanical

Sizedia. 50 x 79.2mm
Optical total length36.2mm
MountCS
Weight265g
Shipping weight (estimated)0.47 kg
