CCTV lenses

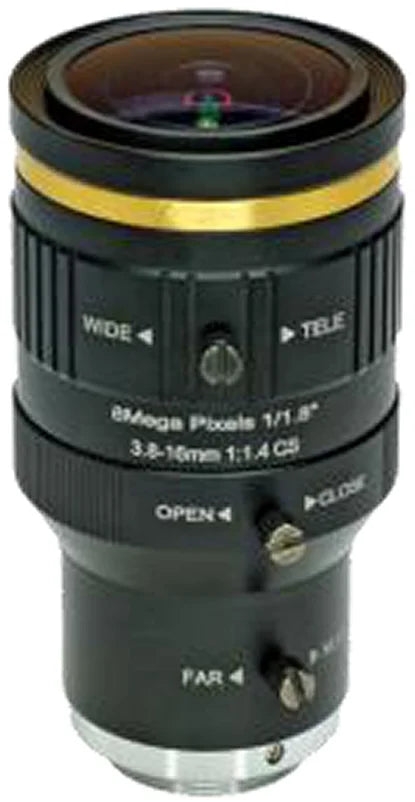

3.8-16 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens, F1.4 Manual Iris (LS-CTV-0149)
Model LS-CTV-0149
- Focal length3.8-16 mm
- MountCS-mount
- Sensor1/1.8"
- ApertureF1.4 Manual Iris
- Resolution8 Megapixel
$109.00
Ships in 2-3 weeks
0.37 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.8-16 mm, 1/1.8", 8 MP, CS-mount Varifocal CCTV Lens. 3.8-16 mm, 8 megapixel IR-corrected varifocal lens for 1/1.8" cameras with F1.4 manual iris and CS mount. At a glance: focal length 3.8-16 mm; format 1/1.8"; resolution 8 Megapixel; aperture F1.4 Manual Iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0149 |
|---|---|
| IR corrected | IR |
| Format | 1/1.8" |
| Angle of view (1/1.8") | W 99.8 x 75.2 deg / T 75.2 x 18.6 deg |
| Notes | Element 11G |
| IR correction | IR |
| T.T.L. | 91.27 mm |
| Elements | 11G |
Optics
| Focal length | 3.8-16 mm |
|---|---|
| Aperture | F1.4 Manual Iris |
| M.O.D. | 0.25 m |
Sensor and imaging
| Resolution | 8 Megapixel |
|---|

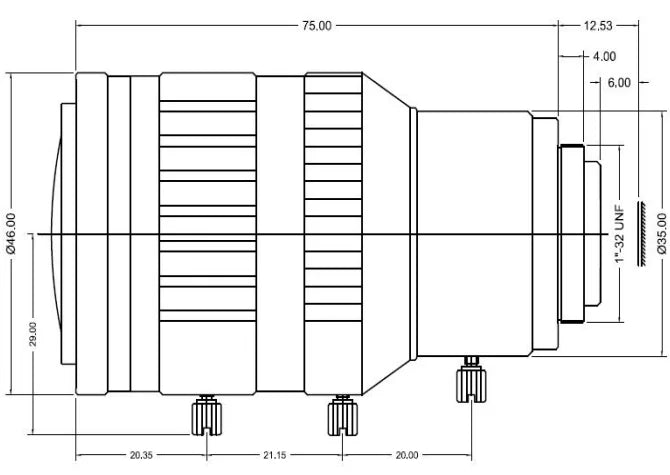

Mechanical
| Size | dia. 46 x 75 mm |
|---|---|
| Total track length | 91.27 mm |
| Mount | CS |
| Weight | 193 g |
| Shipping weight (estimated) | 0.37 kg |
